These modular monitor cage rails will fit all the most popular monitor systems and allow you to mount NATO-compatible accessories such as handles, clamps, and articulating arms.
Interchangeable Anti Twist Locator Pin inserts allow you to use all the most popular monitors and quickly secure them with a single bolt--SmallHD, PortKeys, Atomos, Blackmagic, Feelworld, etc.
Accessories can slide along the length of the rail, and when it's time to pack up, disengage one of the spring-loaded pins at either end of the rail and slide your accessories off.
Use these to quickly attach a monitor to your camera or to build out your custom Director's Monitor.
1/4"-20 mounting screws are included, as is a hex wrench for installing the rail.
RED KOMODO Cage
Regular price$150.00 USD
Save $-150.00 USD
Our RED KOMODO Cage is here with an optional top handle!
Compatible with all popular accessories such as: RED Link Adapter, RED Outrigger Handle, RED Expander Module, Revolva ND Adapter, Breakthrough EF Lens Adapter and Drop-In Filters, Canon RF to EF adapter with filters, RF to PL adapters, and more!
Not compatible with:GDU sidearm
Modular Design: Each plate can be mounted independently from the rest.
Top Plate: Low Profile NATO rail with Bubble level, 1/4"-20 and ARRI 3/8"-16 threads
Side Plates: Symmetrical Rosettes, Vertical NATO rails with Safety Pins, 1/4"-20 and ARRI 3/8"-16 threads

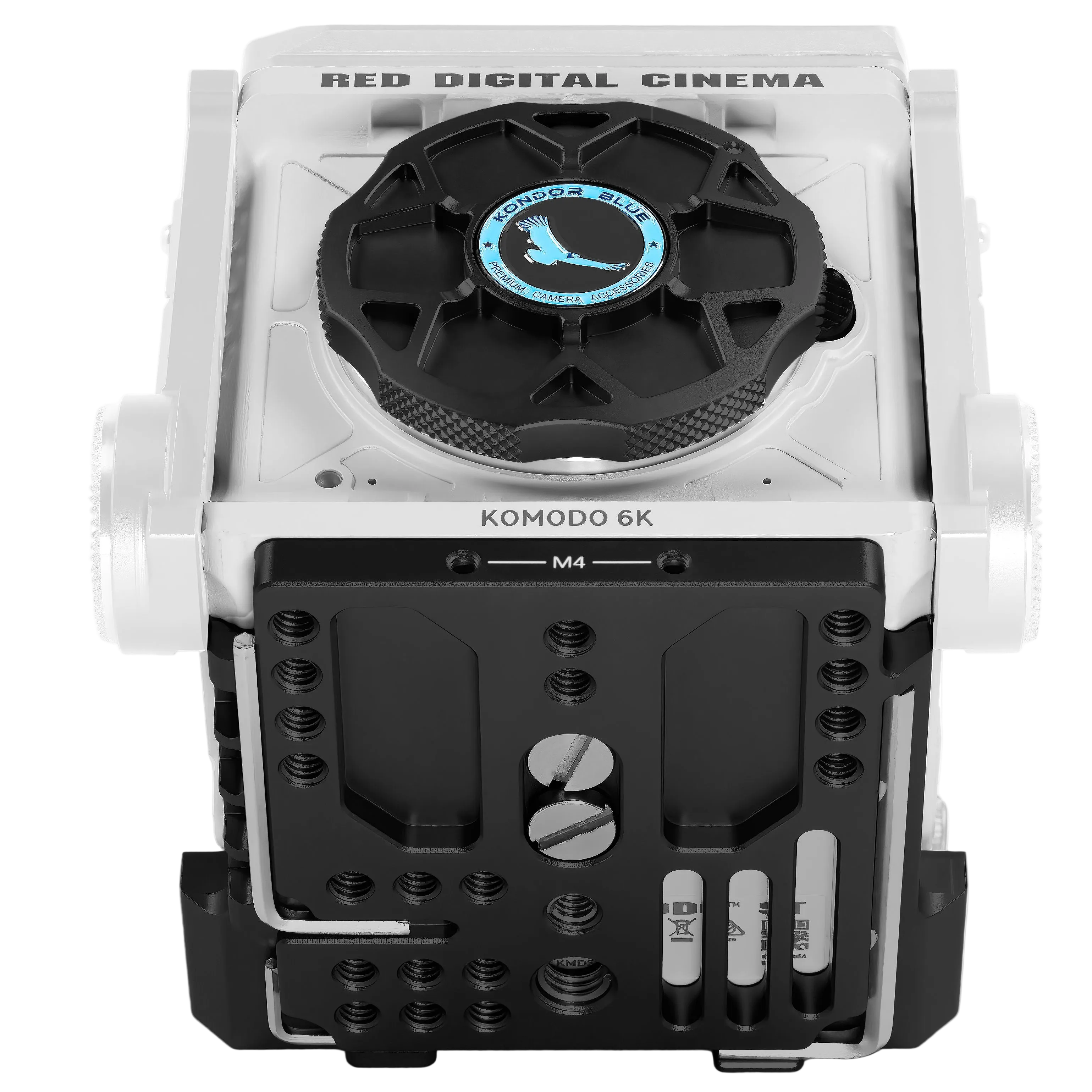

Bottom Plate: Helicoil steel threads, Magnetic Tools, Side Wings with 1/4"-20 threads, Rubber Pads for Camera Protection, front threads for our Lens support.
Compatible with our LWS Bridgeplate for the perfect lens height from the Rods.
Remote Trigger Top Handle: Start/Stop Record button for video and stills
Arca Swiss Quick Release System: rapidly remove the camera from the cage for Stills or gimbal use.
Multiple Points of Contact: Cage remains solidly mounted to the camera to prevent wiggle and allow for large setups.
Built-In NATO Rails: Both on Side on Top of Cage.
Cold Shoe Safety Pin: prevent the notorious sliding issues that plague cold shoe accessories.
HDMI & USB C Cable Clamp: prevent damaging the micro-sized ports on the camera and losing signal.
ARRI Standard Accessory Mounts: locating pins to prevent twist on every side of the cage.
Over 70 Threaded Holes: 1/4 and 3/8
Easy Accessibility for Buttons, Dials, Cable Ports, and Battery/Card Doors.
Designed to protect the camera from the most common drop angles.
Perfect Balance: Designed to maintain ideal center of gravity with most lens sizes for effortlessly maneuverability from top handle
Comfortable: Ergonomically designed for handheld use
* If your top handle button is not working, make sure you change your "shutter btn function for moves" to "fully-press = start/stop mov rec" in the MENU settings and that your handles switch is set to P for Canon mirrorless cameras.
The Mod Kit includes 2 extended side rails that allow the Kondor Blue R5C/R6/R Cage to accommodate the Canon BG-R10 Battery Grip (not WFT-R10).
These extended side rails simply replace the shorter rails that come with the standard cage using the same set of M2.5 screws. The LEFT SIDE rail features 10x 1/4-20 threaded mounting holes and one 3/8-16 ARRI standard threaded mount. The top half of this left rail also features a fully functioning NATO rail with a safety push pin for any side handle or other NATO accessories. The RIGHT SIDE rail is shaped for comfort and features 12x 1/4-20 threaded mounting holes and one 3/8-16 ARRI standard threaded mount.
Dimensions of Base Rig without rods: 9.5” x 4.5” x 3” (Height is 7” without top handle)
Remote Trigger Top Handle for EOS R5, RED KOMODO, Fuji, Z CAM, URSA, C300, C70, Sony A7, LUMIX (Start/Stop Trigger)
Regular price$99.00 USD
Save $-99.00 USD
Kondor Blue’s top handle has been tested with popular cameras such as RED KOMODO, Canon EOS R/R5/R6, Fuji X-T4, C500, C70, C300, Z CAM Flagship, URSA Mini Pro, GH5, LUMIX S1H, Sony A7 Cameras, and many more!
*Includes a 2.5 to 2.5 LANC cable and a 2.5 to micro USB remote cable.
(Komodo and N3 Shutter cables must be purchased separately unless purchased with a cage as a bundle.)
Top Trigger Handle Features:
Start/Stop Record Button. Supports both Sony LANC and Panasonic Protocols providing Compatibility for most cameras such as Z CAM, Blackmagic, Fuji, Sony, Canon, Panasonic, JVC, etc.
Five 3/8" threaded holes with ARRI Locator Pins for Antitwist Accessories such as our Mini Quick Release Plates
Over Eighteen 1/4" hole options for mounting accessories
15mm Side Rod Support for EVF or Monitors
Cold Shoe mounts on each end of the Handle
Mounted via NATO Rail and can also slide on to both Left and Right Sides of Cage
Comfortable and Ergonomic Grip Design
Optional Accessories Include: FF Single Rod Adapter, T5 SSD Holder, ARRI Rosette Adapters, 15mm Rods, 501 ARRI Baseplate, Rosette Extension Arms, Rosette Handgrips, Mini Quick Release Plates, Cine Magic Arm, 2 Pin LEMO to D-Tap Cable
Dimensions: 5” x 3” x 1”
Weighs: 6 oz
*Quick Guide for Camera Control Switch Modes:
"P": Canon EOS R, EOS R5C, EOS R6, LUMIX S1H, Panasonic GH5, S5, Fuji XT4, RED KOMODO,
"S": All Sony Cameras, URSA Mini, C300, C500, C70, Z CAM
Blackmagic Pocket Cinema 4K/6K Base Rig
Regular price$325.00 USD
Save $-325.00 USD
This Blackmagic Pocket Cinema Camera 4k/6k Rig Consists Of:
Kondor Blue Full Cage with Top Handle for Blackmagic Pocket Cinema Camera 4K and 6K (BMPCC4K)
Features Include: Bubble Leveler, Cold Shoe Mounts, NATO Rails, and 15mm Rod Holder. Optional Accessories Include: FF Single Rod Adapter, T5 SSD Holder, ARRI Rosette Adapters, 15mm Rods, Baseplate, Rosette Arms, and hand grips.
The Kondor Blue Full Cage with Top Handle for BMPCC 4K/6K is a four-sided cage featuring an integrated bubble level and built-in shoe mount. The top handle attaches by quick release to a NATO rail that's screwed in on top of the cage.
The top handle provides a second shoe mount, multiple ARRI Accessory Mounts, and a single 15mm rod port for attaching a rod for an EVF, a lens motor, or other accessory. Three of the Accessory Mounts come with 3/8"-16 to 1/4"-20 bushings screwed into them so that you can mount 1/4"-20 accessories on top. These bushings are removable. The levers on the top handle are spring-loaded for more efficient use.
The cage provides access to all the ports, slots, and controls of the camera. It offers 1/4"-20 and 3/8"-16 threaded holes all around for attaching accessories as well as mounting onto a tripod. It has several threads on the bottom for extra flexibility in mounting on gimbals and similar camera supports. Your camera is secured to the cage using a supplied 1/4"-20 screw that screws in from the bottom.
Four-sided cage with integrated bubble level and shoe mount
NATO rail top handle with anti-twist ARRI Accessory Mounts, 1/4"-20 bushings, shoe mount, and 15mm rod port
1/4"-20 and 3/8"-16 threaded holes all around
1/4"-20 and 3/8"-16 tripod mount threads
Access to all ports, slots, and controls of the camera
Mount Types: Cage: 41 x 1/4"-20 Female, 2 x 3/8"-16 Female, Shoe Mount
Top Handle: 8 x ARRI Accessory Mounts (3/8"-16 to 1/4"-20 Bushing Inserted in Three of These), 15 mm Rod Port, Shoe Mount
