Key Cage Features:

This Blackmagic (BMPCC) 6K Pro Ultimate Shoulder Rig begins shipping Mid-August.

Rig Consists Of:

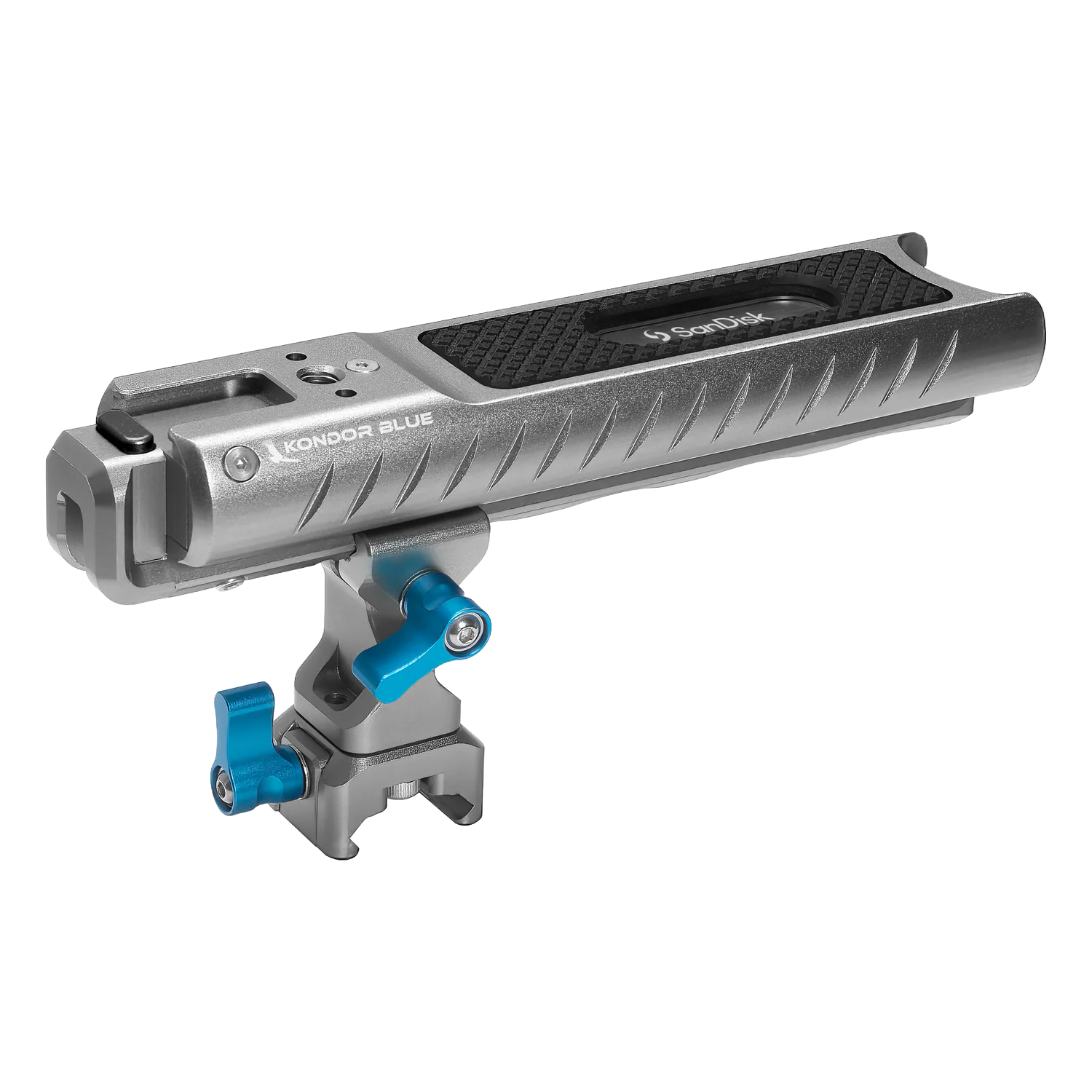

• 1x BMPCC 6K Pro Cage w/ Top Handle

• 1x LWS ARRI Bridge Plate
• 2x 15MM PPSH Rods (12 Inches)
• 1x EF Cine CAP
• 1x Rosette Arm Bundle
• 1x V Mount Battery Plate
• 1x DC to 12V BMPCC Power Cable
• 1 x Shoulder Pad Air

This T5/T7 SSD Holder for our Blackmagic, GH6, and Z CAM cages comes with a cold shoe mount attachment. The SSD holder can also be screwed directly to the cage via 1/4"-20 or attached via our Kondor Blue Mini Quick Release Plate (Recommended).

Add a solid-state drive to your camera rig with this T5/T7 SSD Holder with Shoe Adapter. The aluminum holder is designed to snugly fit the Samsung T5/T7 SSD, which is secured with a thumbscrew.

The SSD holder attaches to the camera, cage, or plate with its integrated shoe adapter, or you can use the 1/4"-20 thread on the shoe adapter to attach to a cage or to the separately available Kondor Blue Mini Quick Release Plate. The included cable clamp allows you to protect your drive cable from pulling and can be removed by using a mini Allen wrench.

Mounting: 1 x Shoe Adapter, 1 x 1/4"-20 Thread

Dimensions: 2.6” x 2.4” x 1.25"

Weight: 2 oz

15mm ARRI-Pin Rod Clamp

Product Highlights

- Add a Rod on any ARRI locator pin mount

- Lightweight

- Durable

- Aerospace Grade Aluminum

Key Features

• Normally used to attach a Follow Focus Gear to the rig without the need of a baseplate system.

• The durable aluminum rod clamp attaches to the cage with either a 3/8 or 1/4 bolt and features locating pins to prevent twisting and loosening. A blue locking thumb screw tightens around a separately available 15mm rod.

Dimensions

• Mounting:

• Dimensions:

• Weight:

Product Highlights

- ARRI-style rosettes

- Lightweight

- Durable

- Aerospace Grade Aluminum

Key Features.

• Our double rod clamp allows you to attach and adjust rosette-mount hand grips on your shoulder rig.

• This dual rod clamp mounts onto two separately available standard 15mm camera rods sold separately.

Dimensions

•Mounting: 15mm Dual Rod Block, 2 x Rosettes with M6 Thread (31.8mm)

•Dimensions: 4.6" x 1.26" x 1.26"

•Weight: 4.1 oz

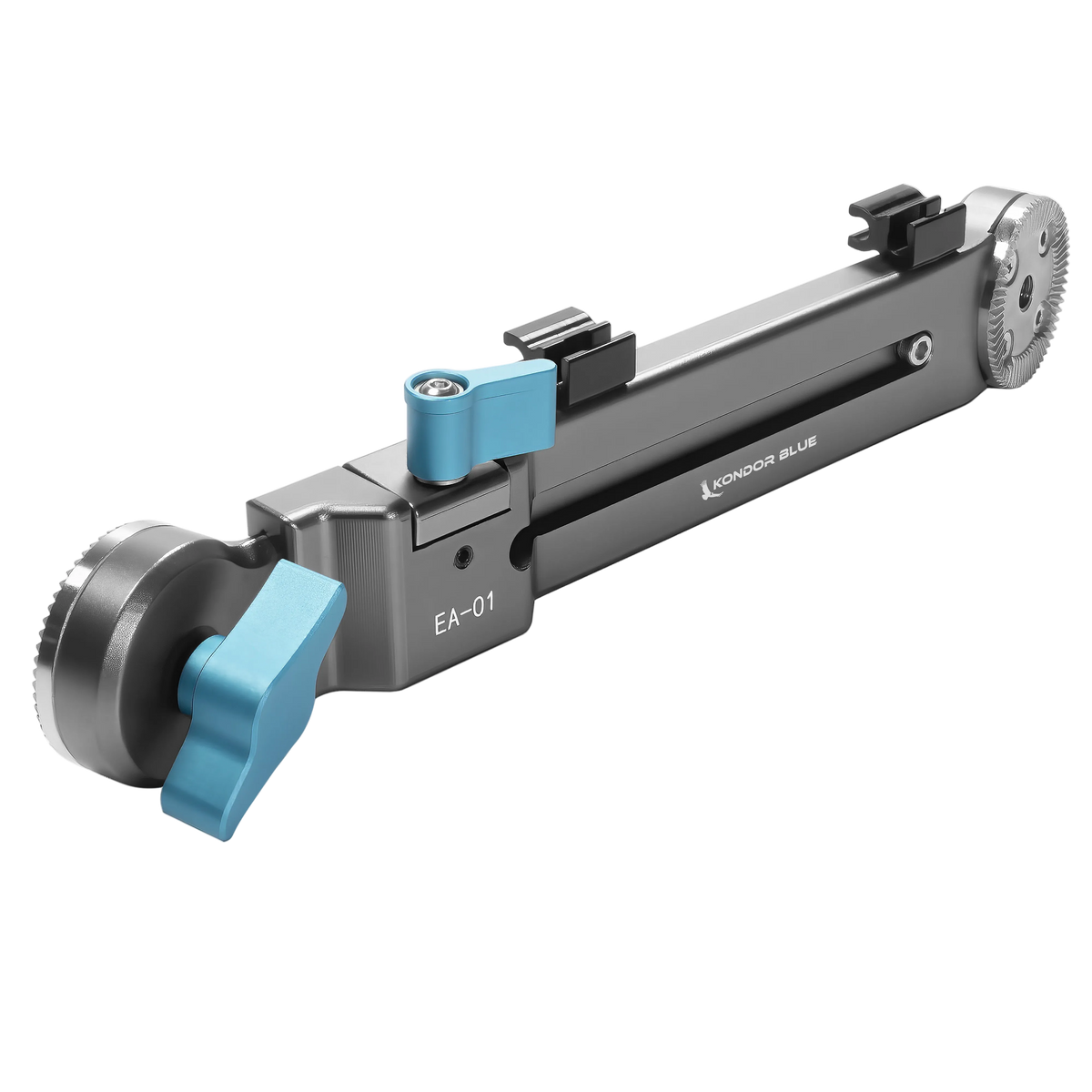

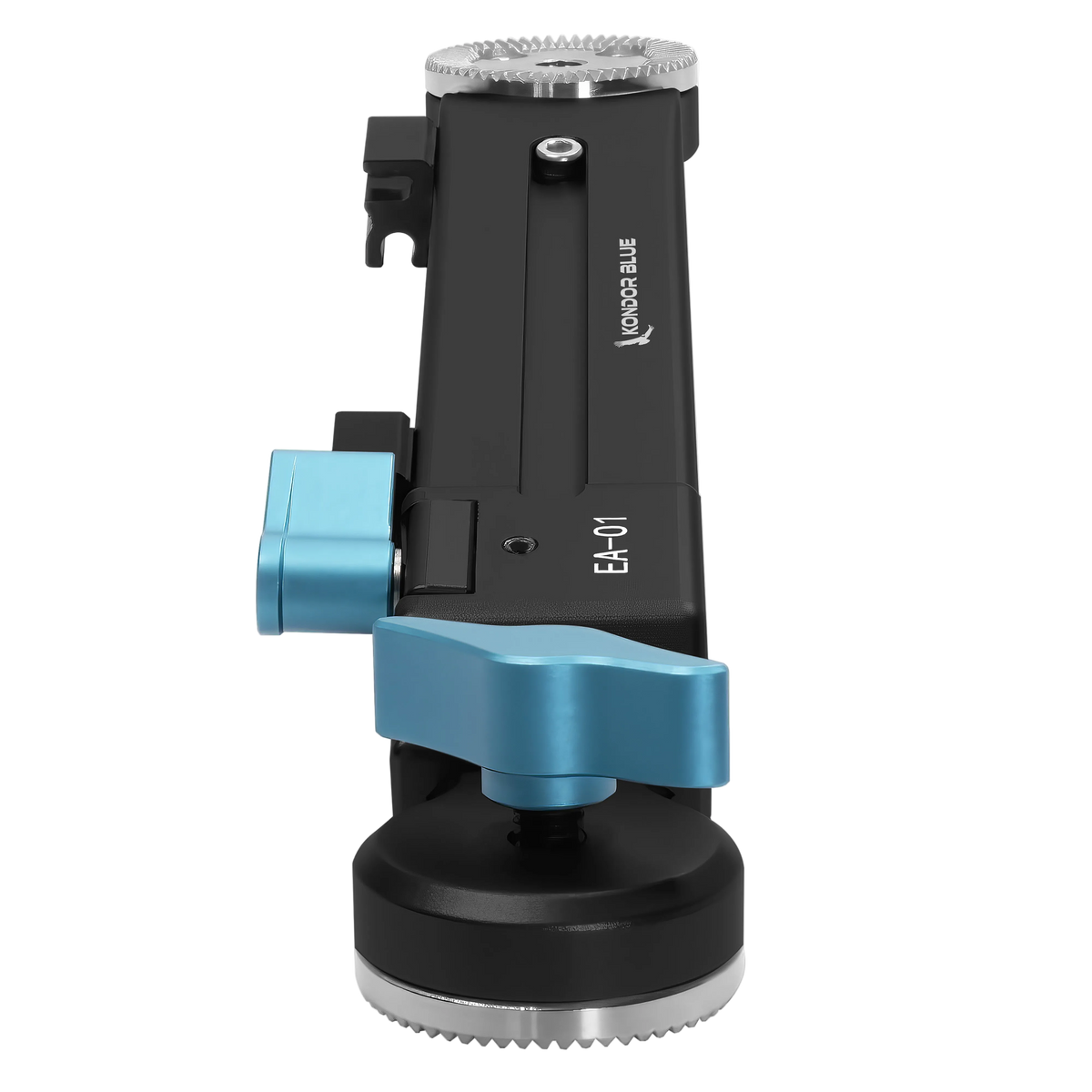

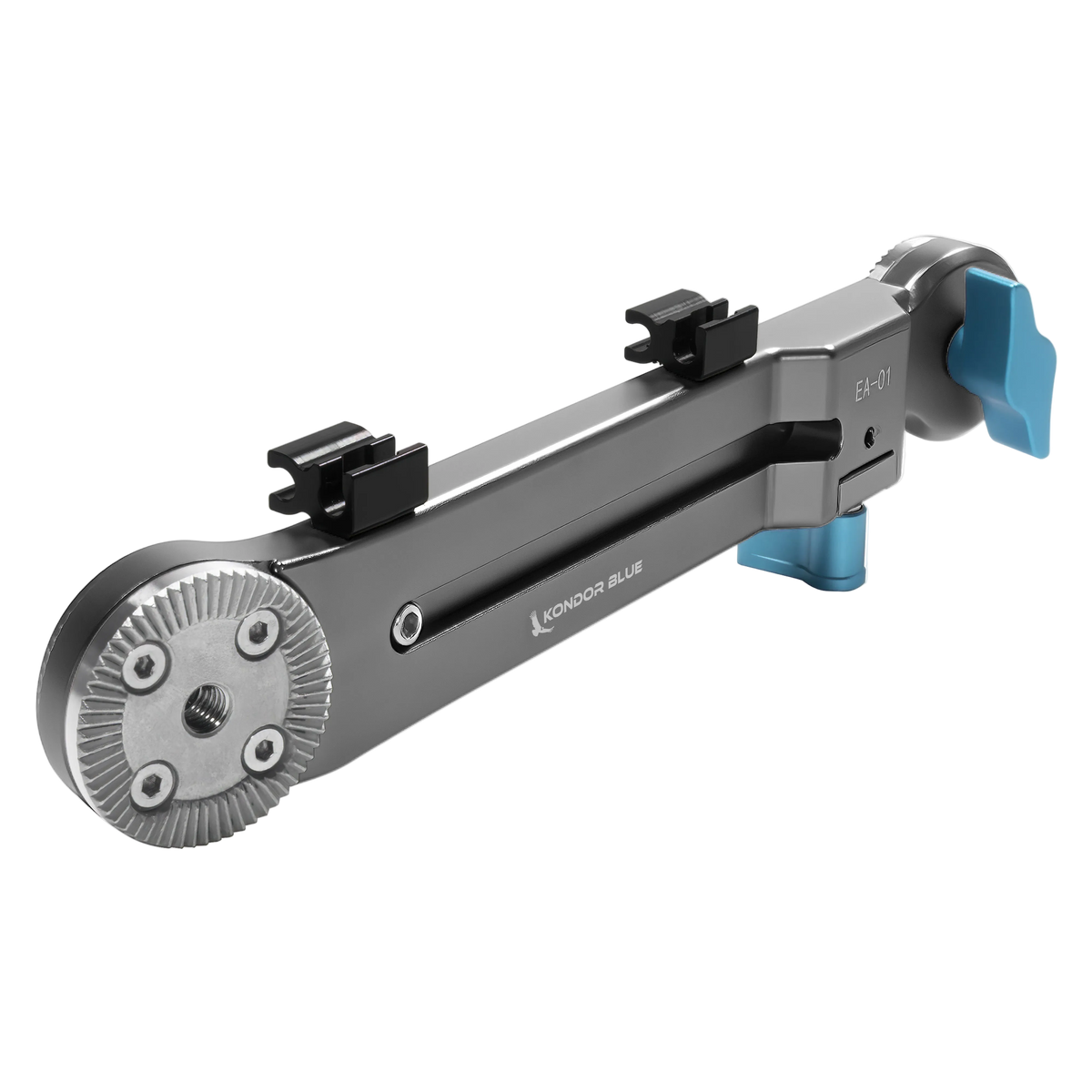

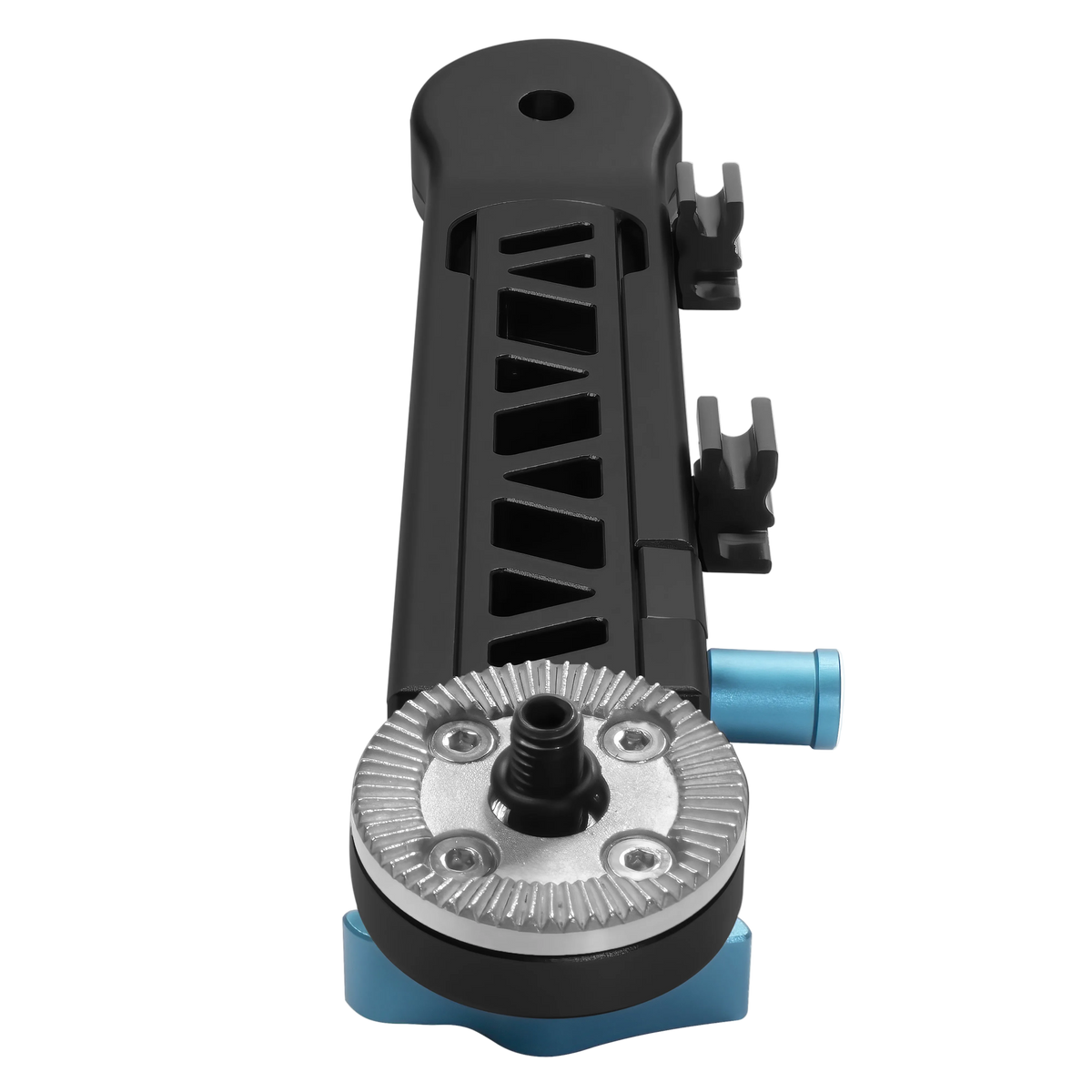

ARRI Rosette Adjustable Length Extension Arm

Product Highlights

- ARRI-compatible rosettes.

- Captive Locking Lever, Cable Clips.

- Aerospace-Grade Aluminum.

- 8 to 11.5" Adjustable Length.

Key Features

• An extension arm to add handgrips or other accessories to the side of your rig using ARRI-compatible rosettes.

• The length of the extension arm can be adjusted from 8" to 11.5" using the center screw, which is tightened by a blue captive locking lever.

• There are also two cable clips on the side of the arm that will keep your cables neat and secure.

• Usually paired with our Rosette Hand Grips and Dual 15mm Rod Clamp.

• This extension arm can be used with almost any accessory that uses ARRI-compatible rosettes.

Dimensions

• Connectors: 2 x ARRI-Style Rosettes

• Dimensions: 7.91" x 1.57" x 1.29"

• Adjustment Range: 8”-11.5"

• Weight: 6.3 oz

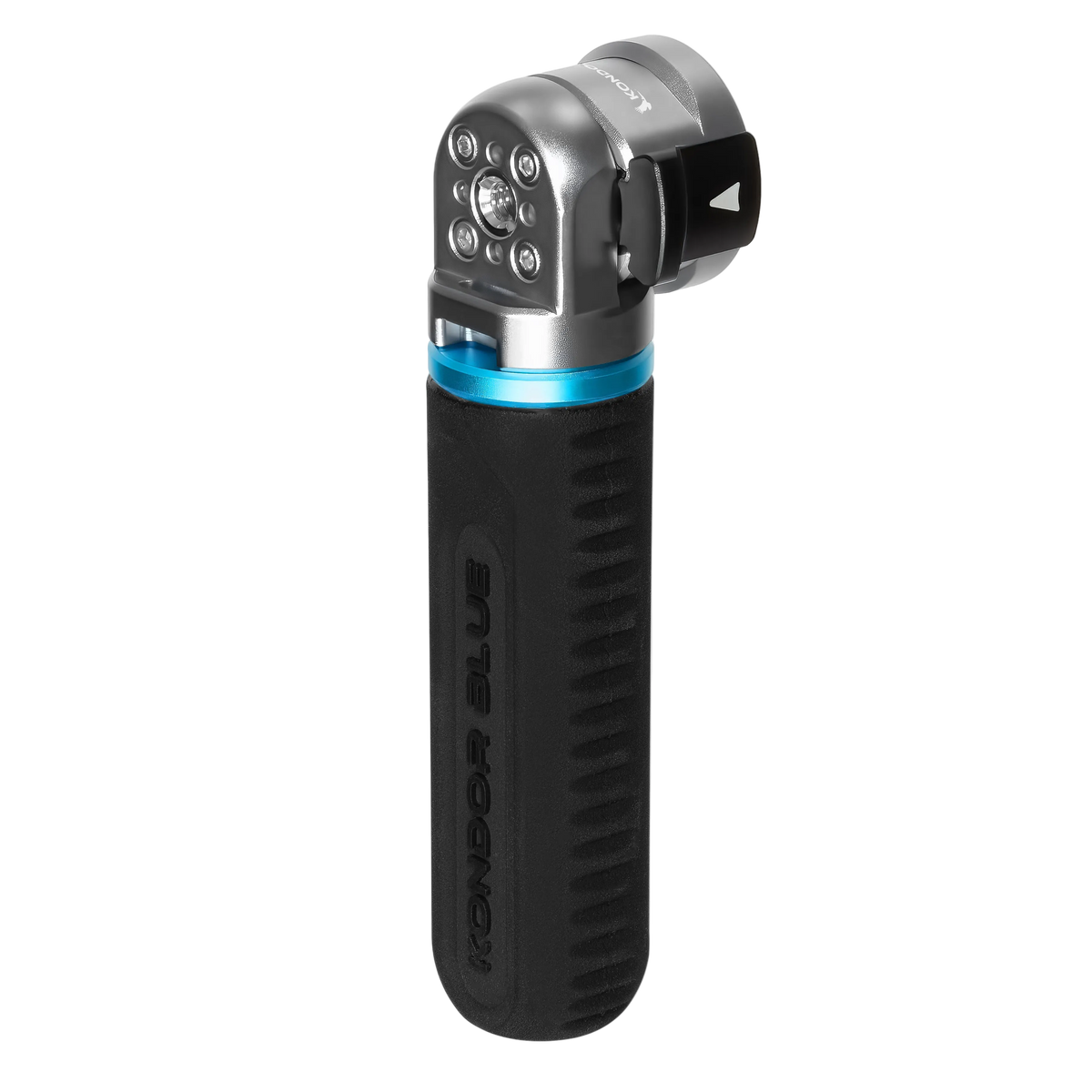

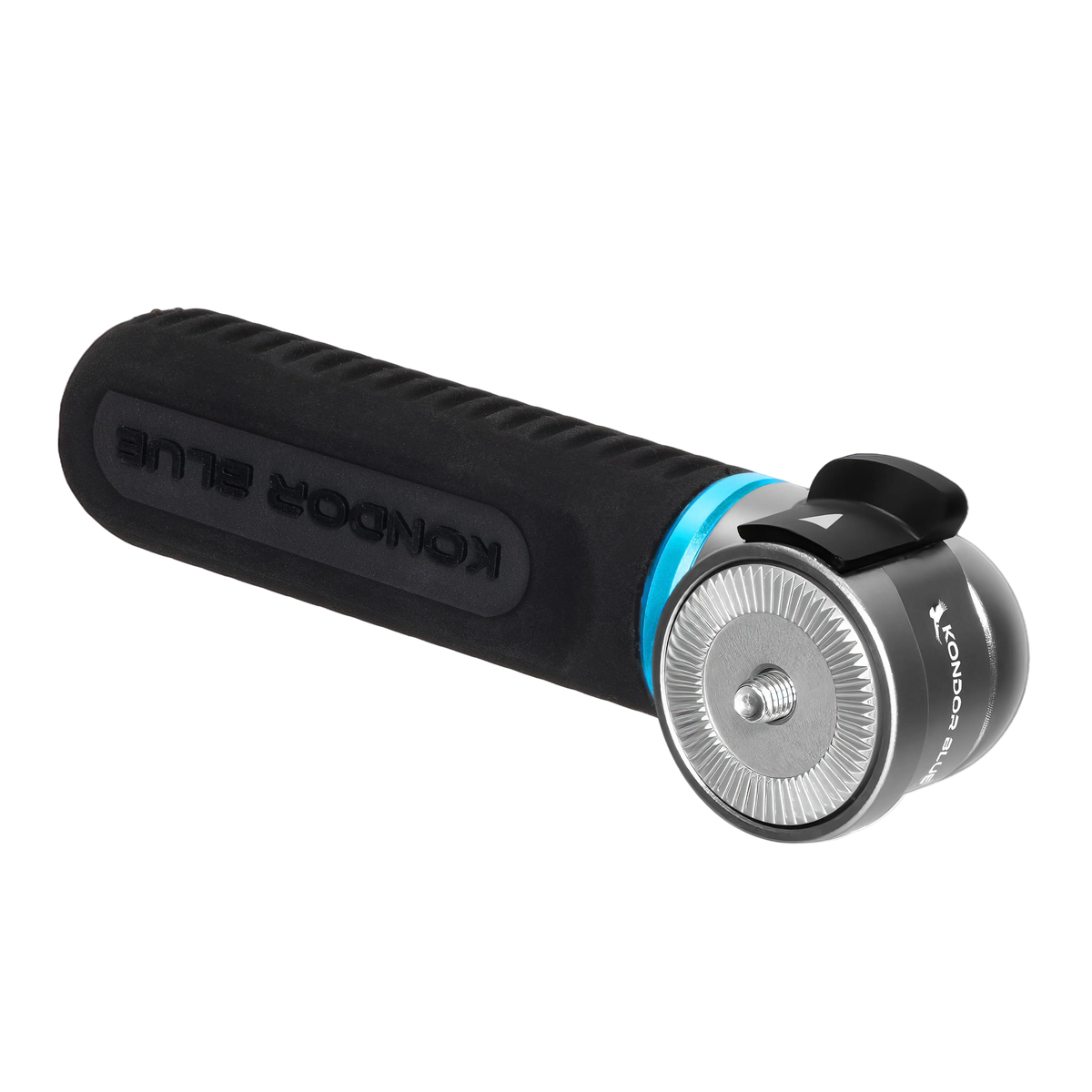

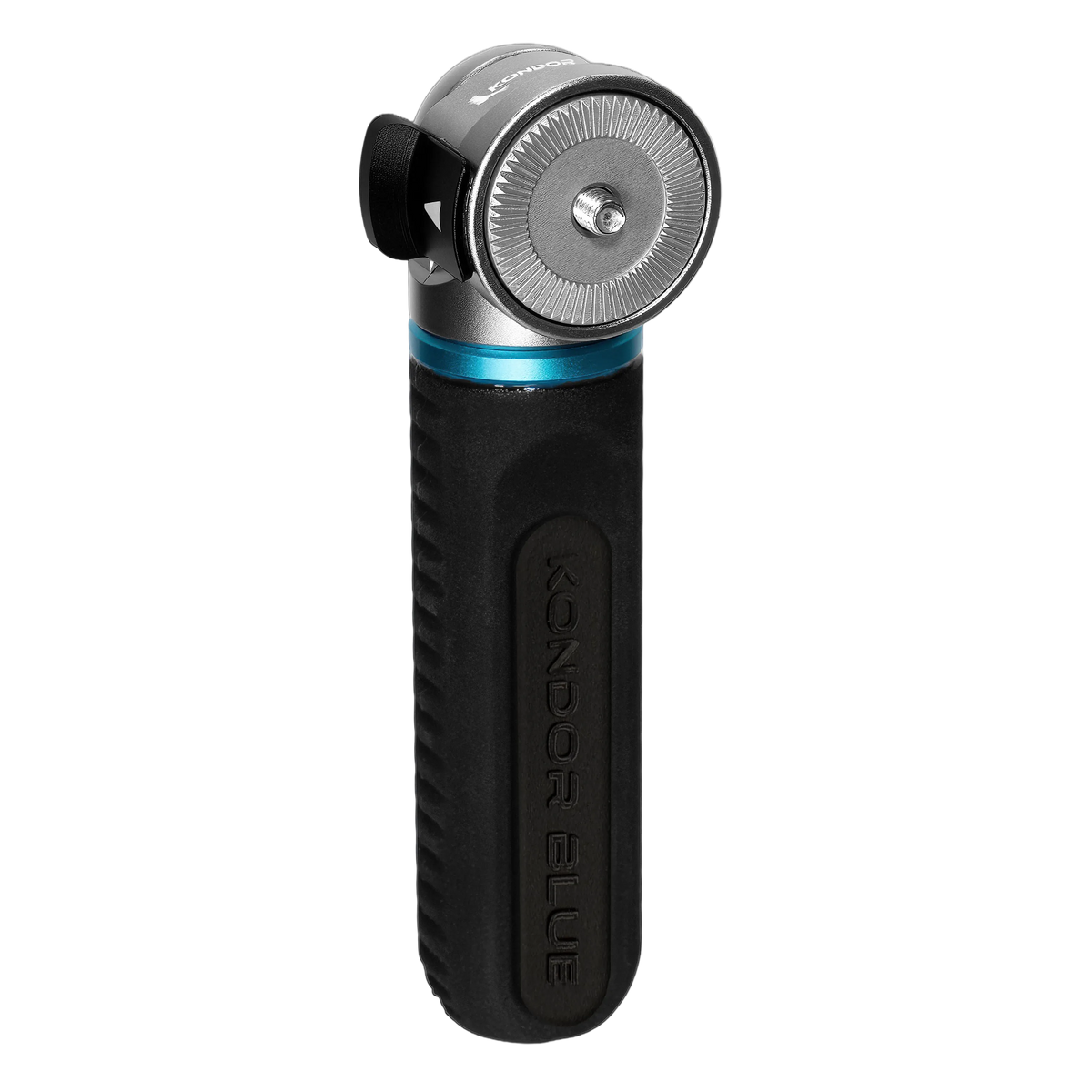

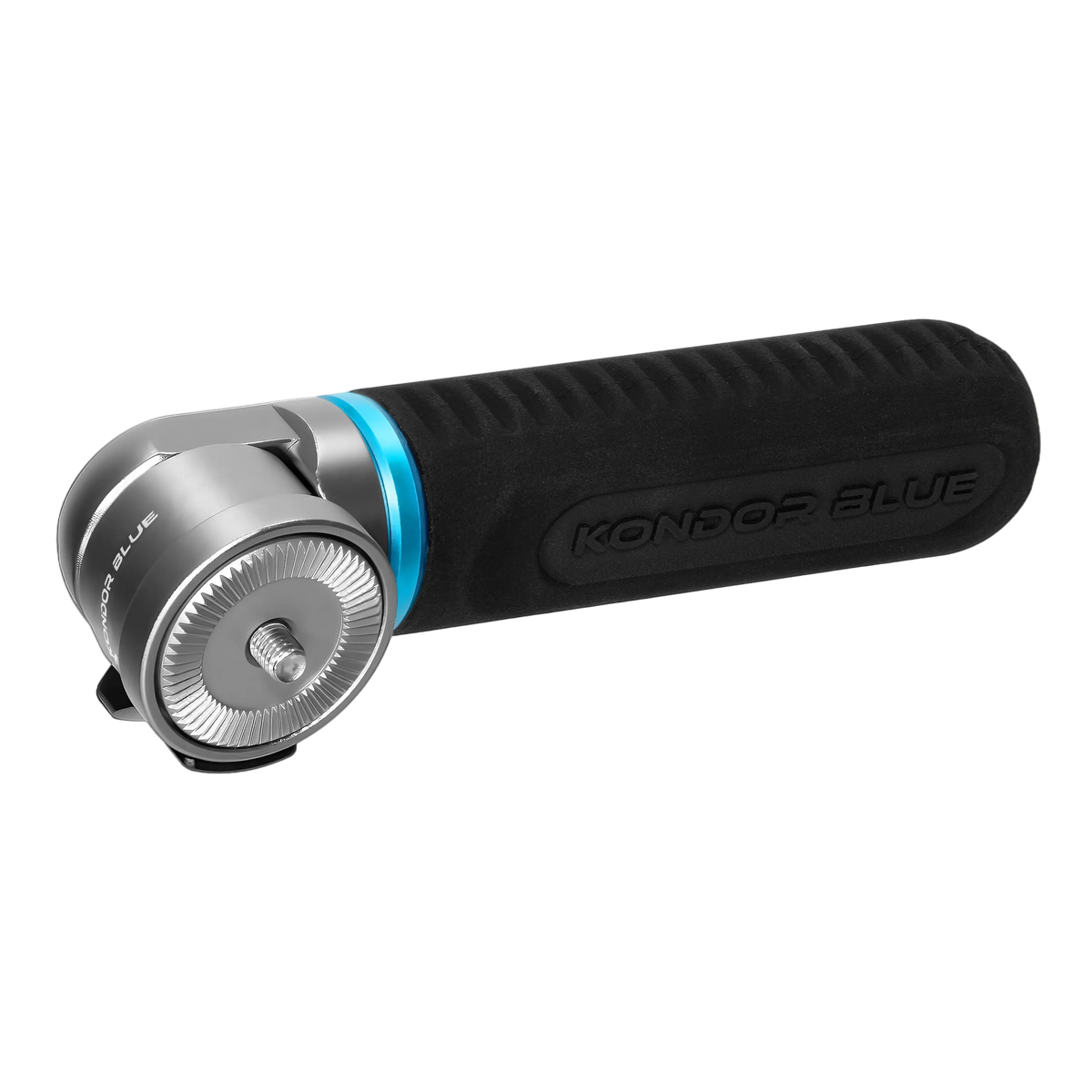

Product Highlights

- Quick-Release Rosette Hand Grip Handle.

- Thumb Lever for Quick Adjustments.

- ARRI-Type Rosette and Locking Lever.

- Textured Black Rubber Grip.

- Side Handgrip.

Key Features

• Made of rubber for a comfortable grip and temperature control.

• Features a Thumb lever for Quick Rosette Adjustments on the go! Sold Individually as well.

• This quick-release rosette hand grip handle can be attached to any ARRI-compatible rosette system with an M6 threaded mounting hole.

• The rubber handle features a high-relief texture for a non-slip grip.

• Compatible with ARRI rosettes with M6 thread.

Dimensions

• Material of Construction: Aerospace-Grade Aluminum, Rubber

• Mounting: ARRI-Type Rosette with M6 Thread

• Dimensions: 6.8" x 1.8" x 1.4"

• Weight: 7.2 oz

Product Highlights

- Connects via ARRI Rosettes.

- Provides Quick Adjustments.

- Aerospace-Grade Aluminum.

Key Features

• The bundle includes a right and left pair of rosette hand grips, a right and left pair of adjustable extension arms, and a standard 15mm rod block.

• The aluminum camera rig handles are lined with textured rubber for a comfortable grip and they connect using quick-release rosettes.

• The extension arms allow you to connect the handles and they can adjust to your preferred position and length.

• The extension arms then connect to the 15mm rod block, which can be mounted on a pair of separately available 15mm rods to complete your shoulder rig.

Dimensions

• Weight: 31.1 oz.

• Sliding ARRI Standard Dovetail Design
• Balances Front- or Back-Heavy Equipment
• Safety Latch
• 12 x 1/4"-20 and 5 x 3/8"-16 Threads
• Weighs 8oz / 225g

Product Highlights

- Mount ANY ARRI Rosette Accessory.

- Aerospace Grade Aluminum.

Key Features

• Mount ANY rosette accessory onto your rig with this ARRI-Style Rosette Cage Adapter.

• The aluminum and steel adapter features two 1/4"-20 mounting screws and will mount any ARRI-style rosette accessory, such as our hand grip handle or extension arm.

• Tools required to mount the adapter are included.

Dimensions

• Mounting: 1 x Rosette, 2 x 1/4"-20 Screws.

• Dimensions:

• Weight: 1.6 oz.

These modular monitor cage rails will fit all the most popular monitor systems and allow you to mount NATO-compatible accessories such as handles, clamps, and articulating arms.

Interchangeable Anti-Twist Locator Pin inserts allow you to use all the most popular monitors and quickly secure them with a single bolt--SmallHD, PortKeys, Atomos, Blackmagic, Feelworld, etc.

Accessories can slide along the length of the monitor rail, and when it's time to pack up, disengage one of the spring-loaded pins at either end of the rail and slide your accessories off.

Use these to quickly attach a monitor to your camera or to build out your custom Director's Monitor.

1/4"-20 mounting screws are included, as is a hex wrench for installing the monitor cage rail.

Product Highlights

Watch the video above to see all the features of our NATO rail monitor mount in action.

- ARRI-Pin Tilt and Pan Monitor Mount

- Supports Monitors up to 7"

- Swivel 360° and Tilt 180°

- Locks in Desired Tension with Set Screws (See video)

- Aerospace Grade Aluminum

- Removable Locating Pins

Description

• Our NATO swivel monitor mount is designed to hold your monitor onto the camera cage or other mounting system featuring an ARRI 3/8” mount.

Dimensions

• Dimensions: 2.14” x 1.6” x 1.0”

• Weight: 1.8 oz

Product Highlights

- PPSh Barrel Design

- Lightweight

- Durable

- Aerospace Grade Aluminum

- Extendable Options

Key Features

• Lightest aluminum rod in the industry without sacrificing strength.

• Used for accessories like follow focus, matte box, lens support, servo motors, and more.

• Extend to custom length with M12 Rod Extension Connectors (sold separately).

Dimensions

• Diameter: 15mm

• Thread size: M12

• Length: 8"

• Weight: 1.3 oz

Product Highlights

- 12-Inch Threaded Rod with PPSh Barrel Design

- Lightweight

- Durable

- Aerospace Grade Aluminum

- Extendable Options

Key Features

• Lightest 15mm aluminum rod in the industry that doesn't sacrifice strength.

• Used for accessories like follow focus, matte box, lens support, servo motors, and more.

• Extend to custom length with M12 Rod Extension Connectors (sold separately).

Dimensions

• Diameter: 15mm

• Thread size: M12

• Length: 12"

• Weight: 2 oz

Product Highlights

- PPSh Barrel Design

- Lightweight

- Durable

- Aerospace Grade Aluminum

- Extendable Options

Key Features

• Lightest aluminum rod in the industry without sacrificing strength.

• Used for accessories like follow focus, matte box, lens support, servo motors, and more.

• Extend to custom length with M12 Rod Extension Connectors (sold separately).

Dimensions

• Diameter: 15mm

• Thread size: M12

• Length: 3"

• Weight: 0.5 oz

Product Highlights

- Features multiple DC outputs.

- Can charge a Battery.

- Aerospace Grade Aluminum.

- 15mm rod connectors.

Key Features

• Our Thin V-Mount Battery Plate features multiple DC outputs (5, 7.4, 12, 15V, and a D-Tap), enabling you to power multiple devices simultaneously.

• Battery Plate also features two 15mm rod connectors, allowing you to mount it to an existing rig via two blue locking levers. 15mm rods are sold separately.

• The plate includes a switchable 7.4/8.4V 1.35mm barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and a D-Tap output.

• The 2.5mm DC barrel charger input allows you to charge the mounted battery with our AC Charger Cable (sold separately). This port will also allow you to power your plate and accessories if no battery is mounted.  (BLINKING light means charger cable is plugged in but no battery is mounted; GREEN light means the battery is fully charged; RED light means Battery is charging)

• Power Input:

1. DC Jack: 19V

• Power Output:

1. D-Tap: 14.4V
2. DC Jack: 15 V
3. DC Jack: 12 V
4. DC Jack: 7.4 to 8.4 V
5. DC Jack: 5 V

Dimensions

• Dimensions: 6” x 4.2” x 1.8”

• Weight: 9.6 oz

Key Features:

• Connect D-Tap Sources to Your Device
• D-Tap to Dummy Battery Connectivity
• Additional 8V DC Out Port to Daisy Chain and Power Accessories
• 16" Contracted Length
• 36" Extended Length
• Input Voltage: 8V - 17V; Output Voltage: 8V (Regulated); Output Current: 2A

This Coiled D-Tap Cable allows you to connect a D-Tap power source to Sony cameras, as well as many other devices that use Sony L-Series batteries, such as Small HD Monitors and LED Lights. The cable features a D-Tap connector on one end and L-Series type dummy battery that connects to your device on the other. It also has the ability to power other nearby accessories via the regulated DC port incorporated on the dummy battery itself for 8V of power.
