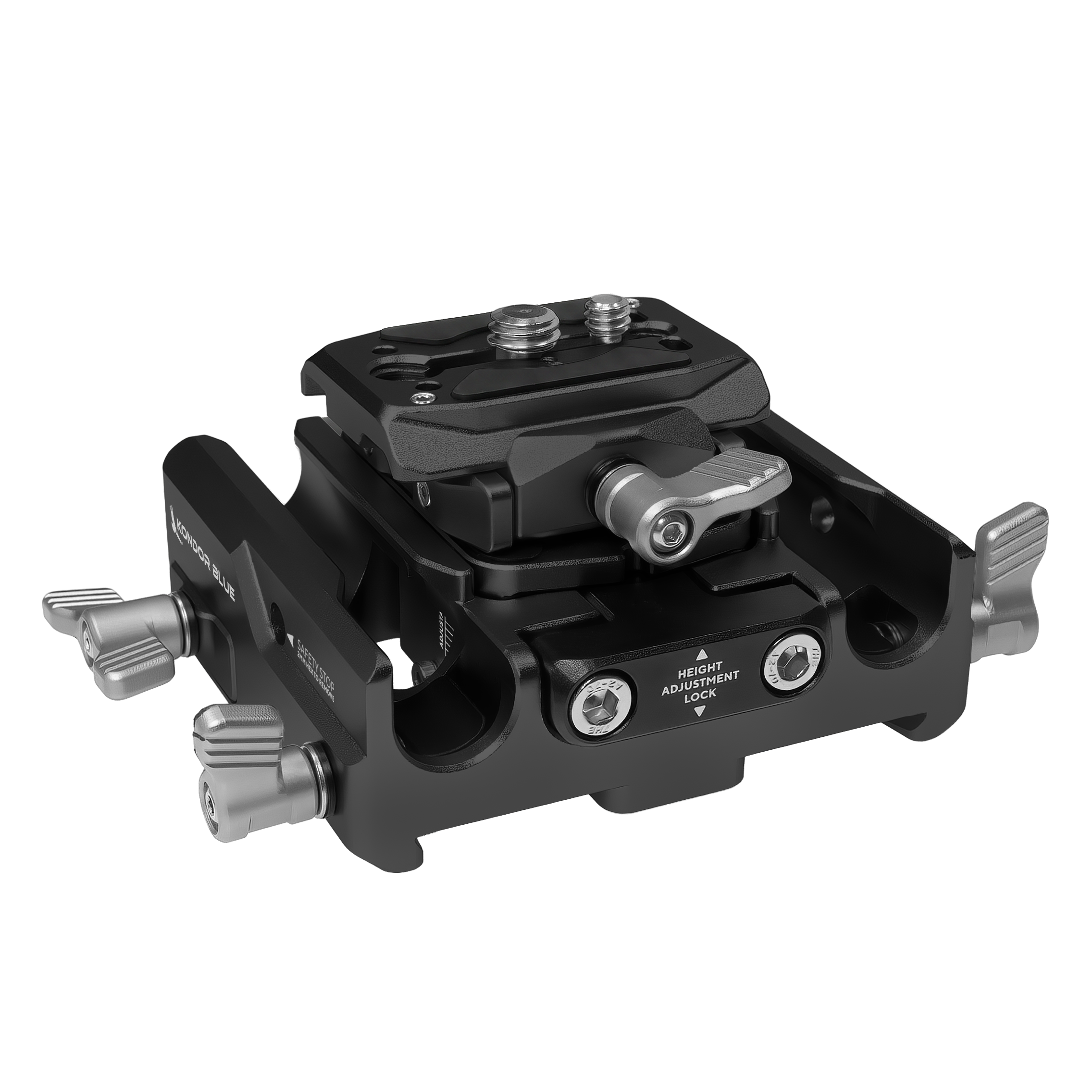

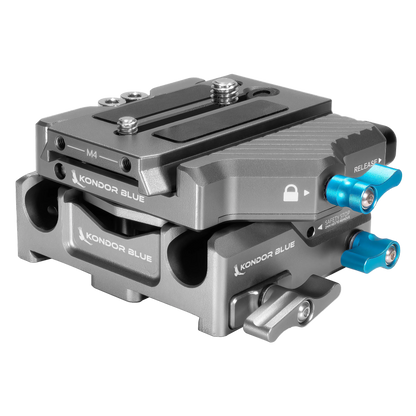

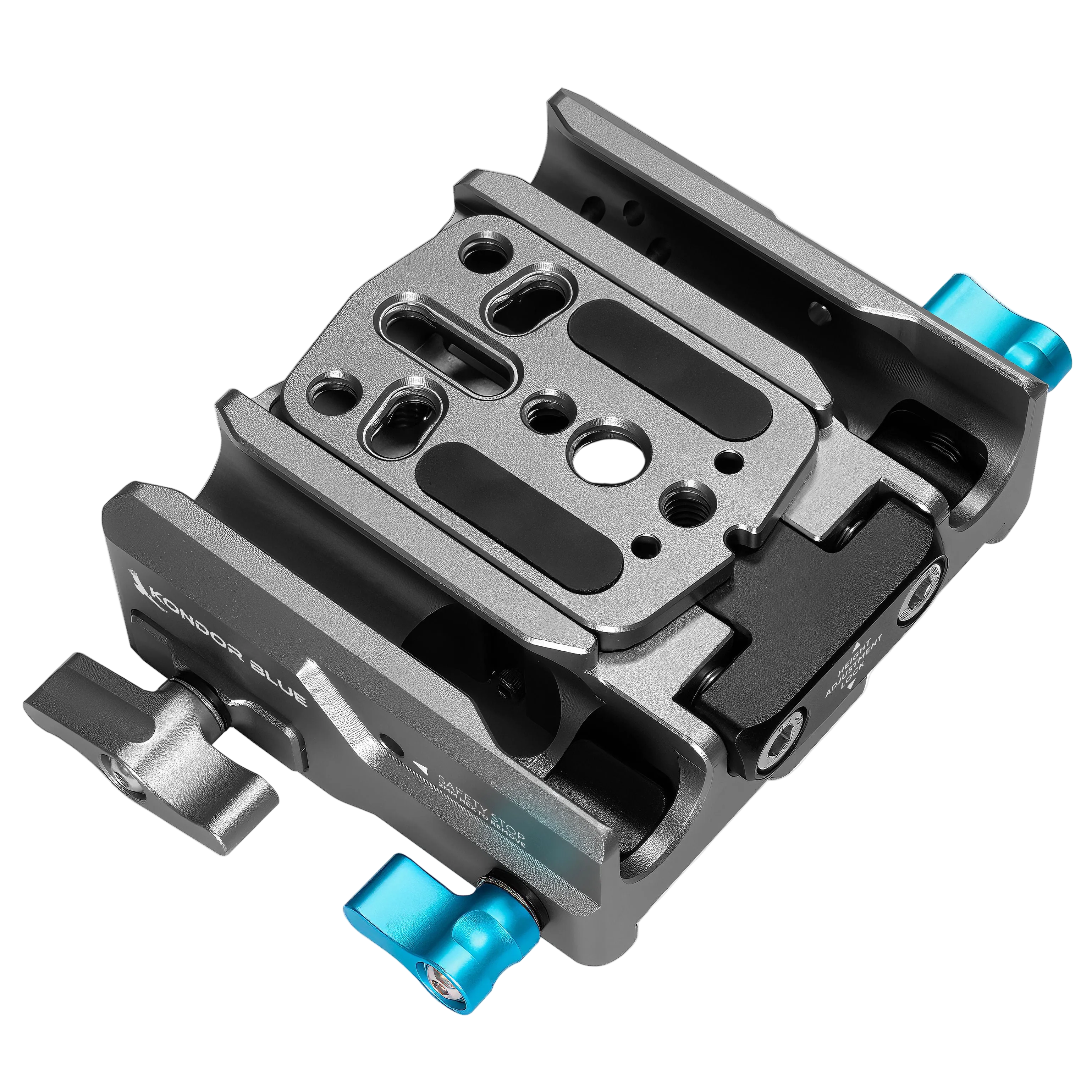

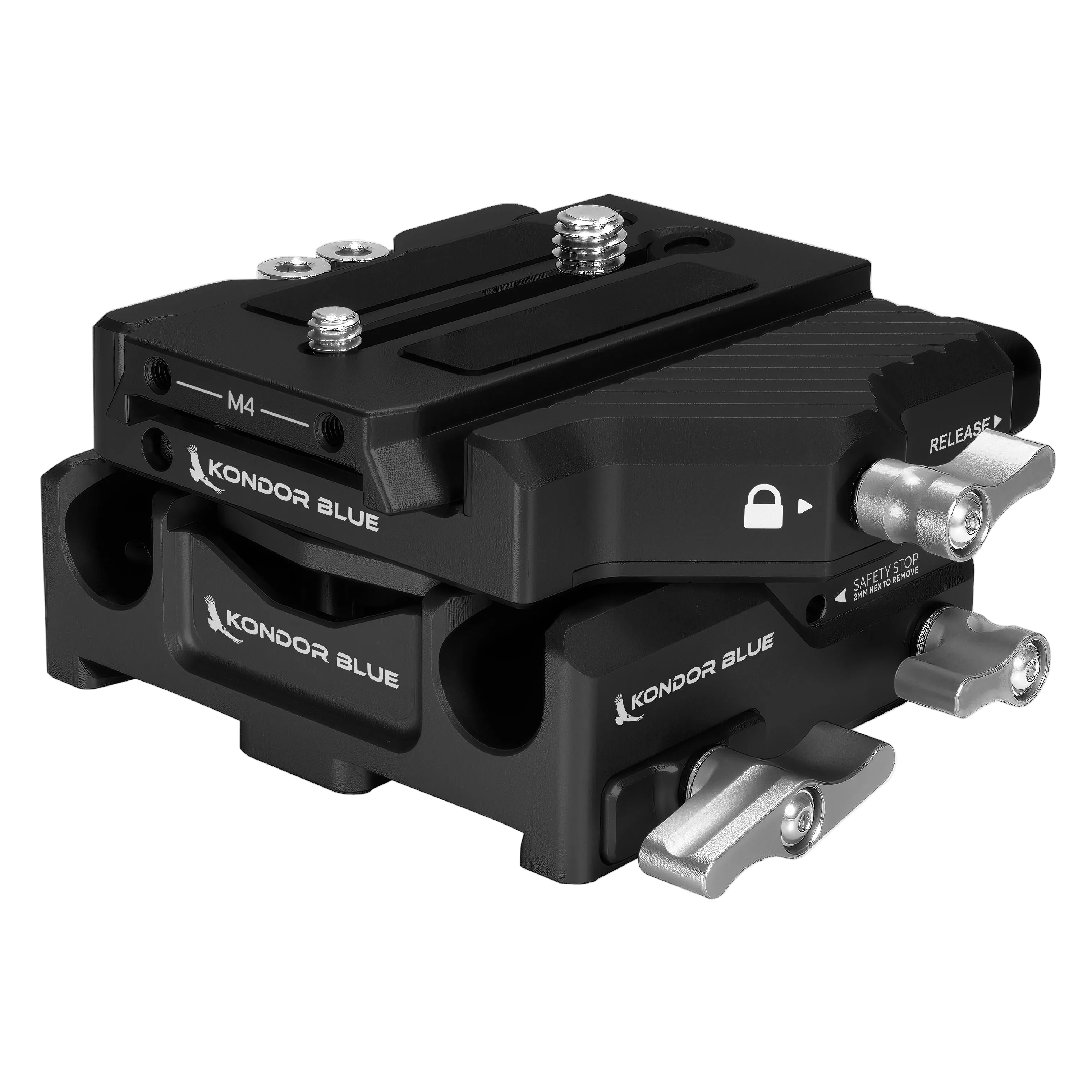

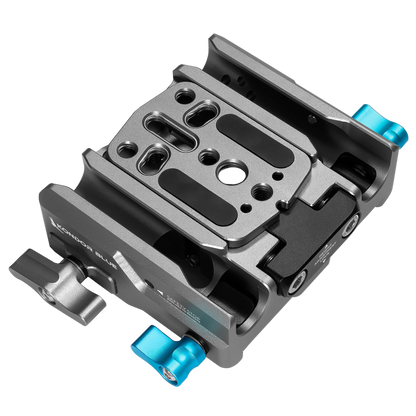

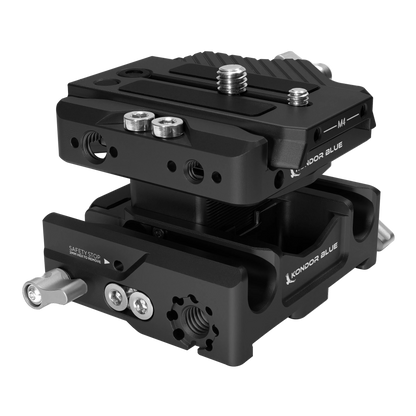

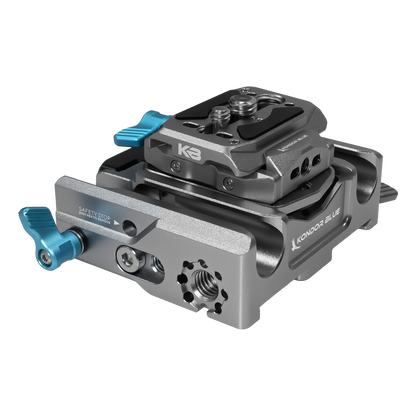

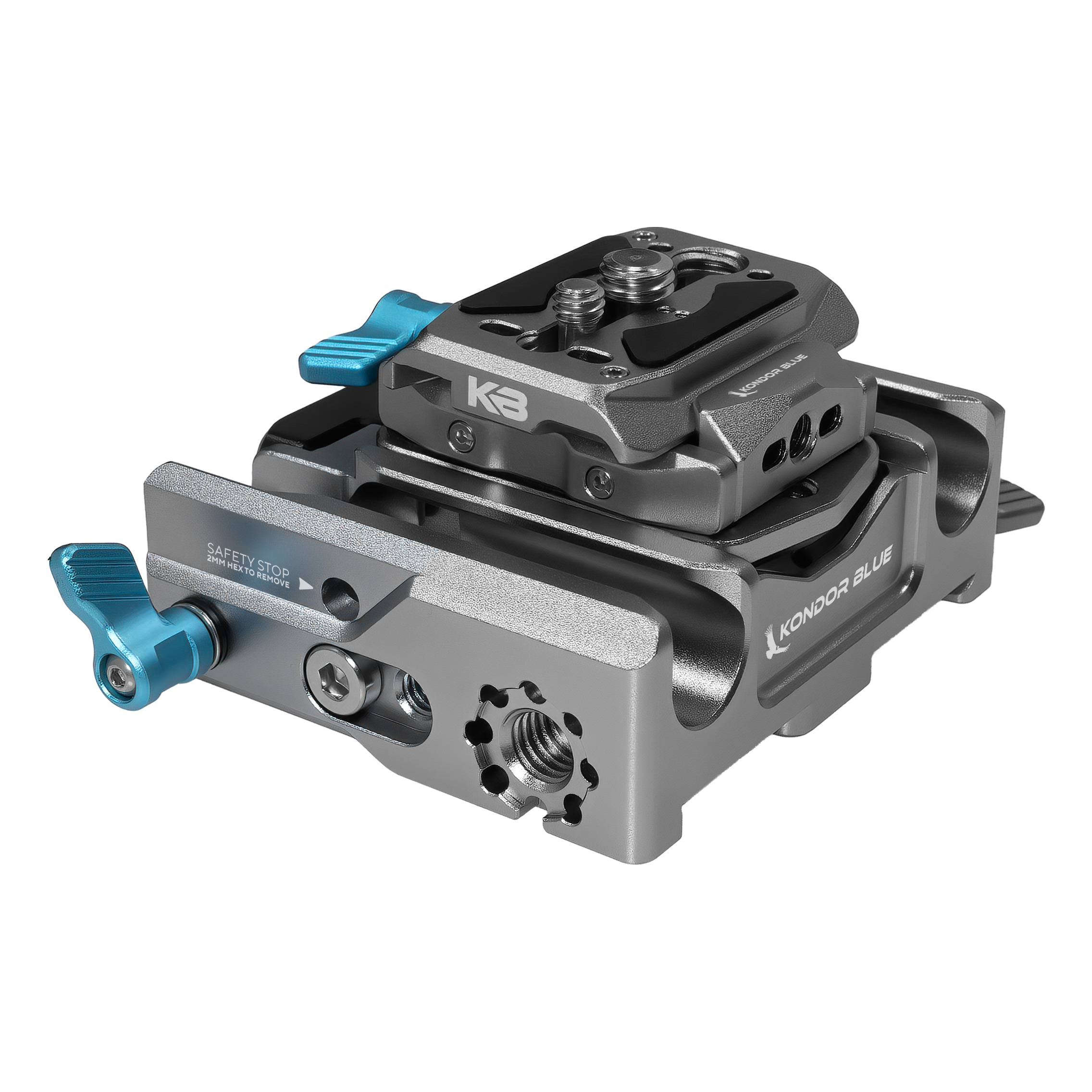

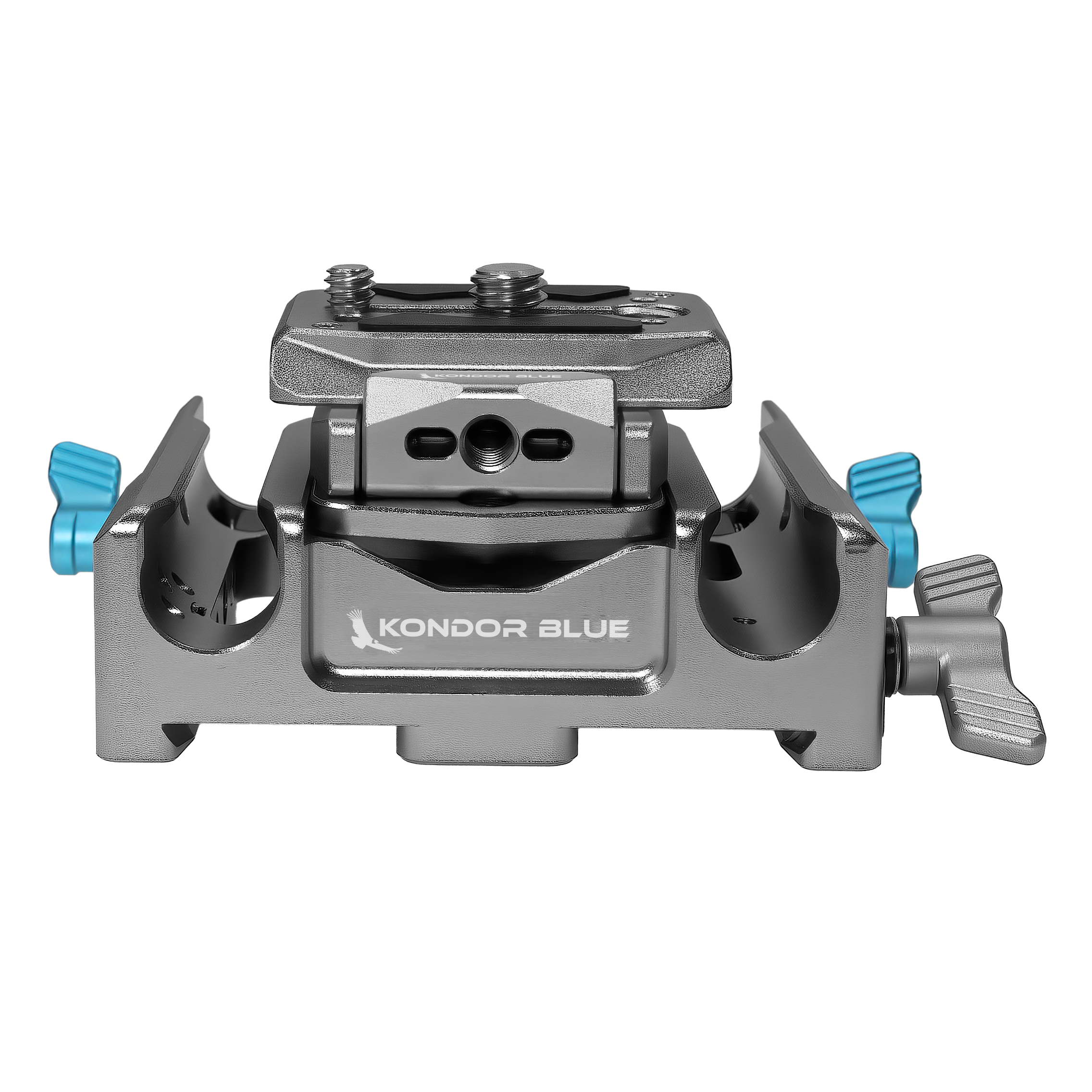

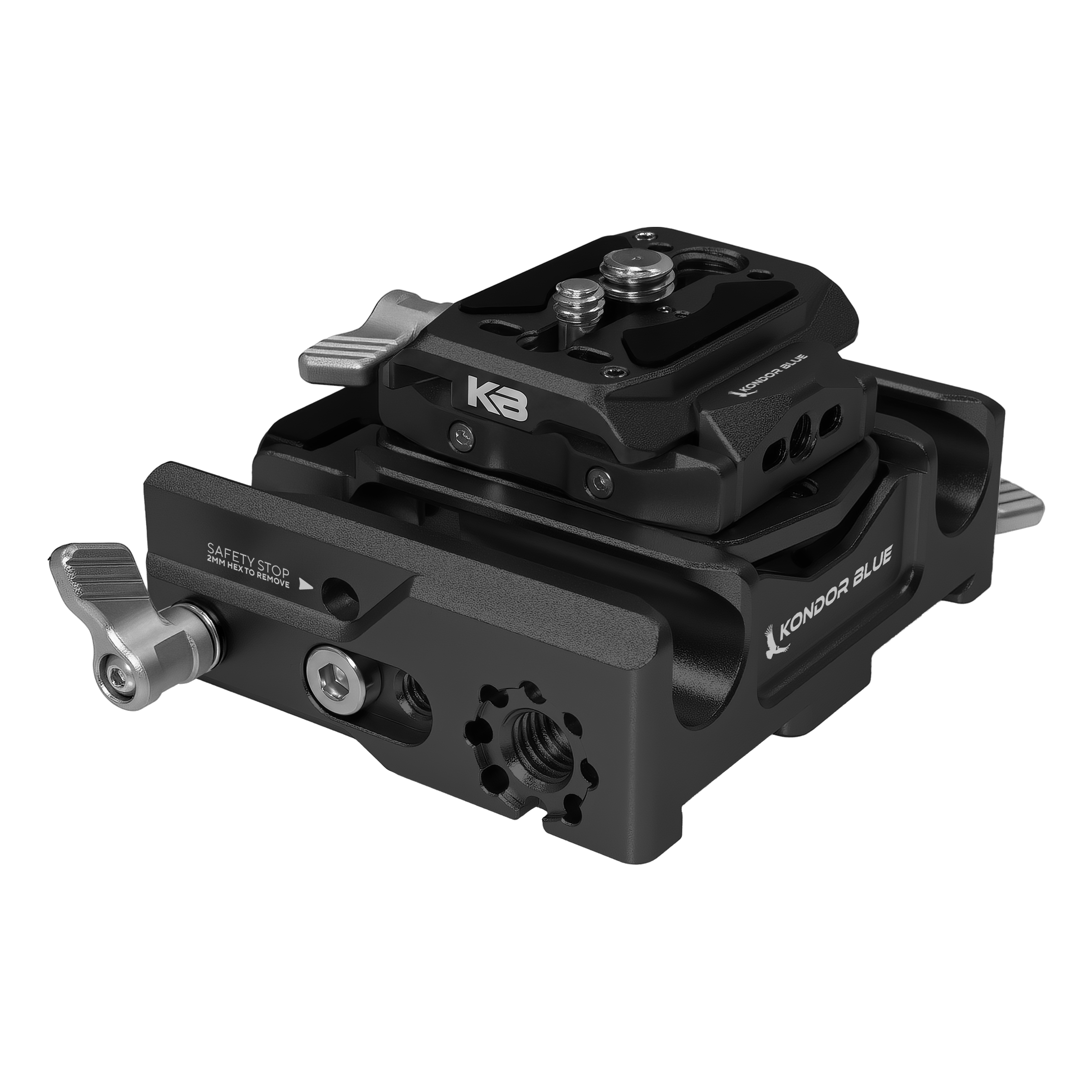

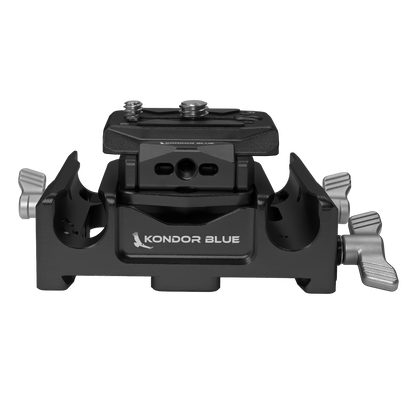

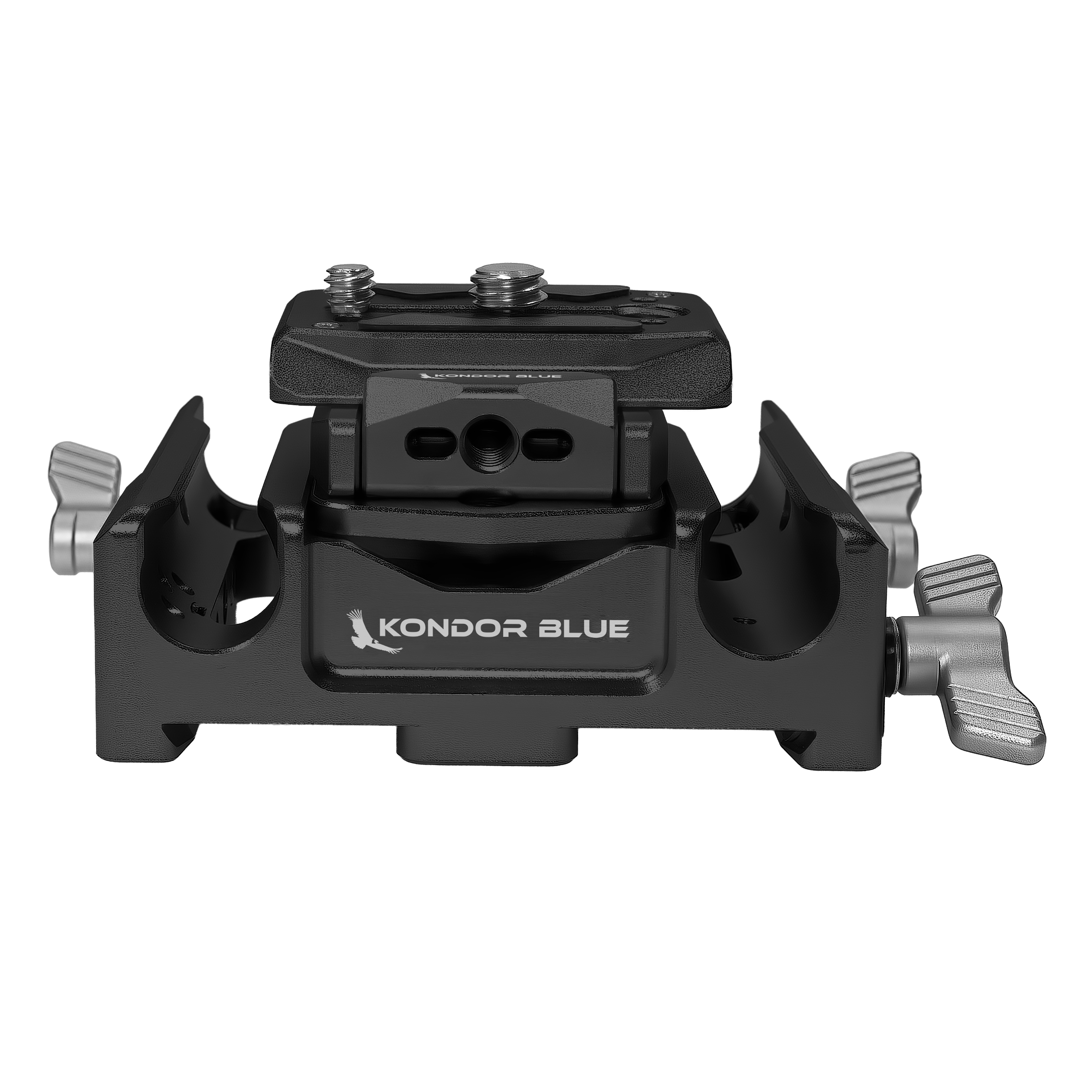

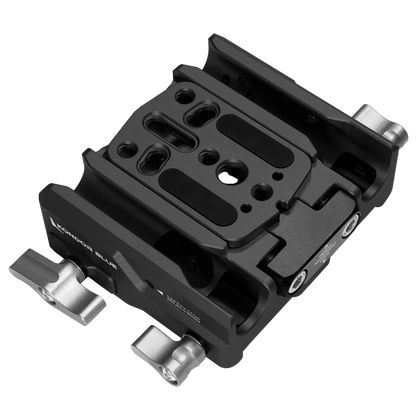

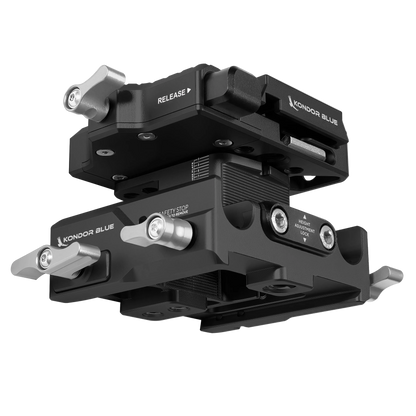

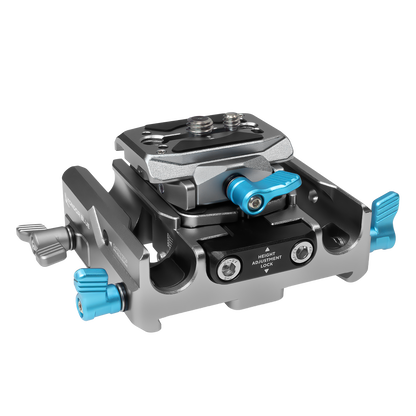

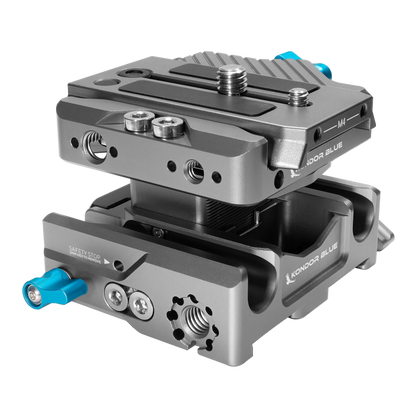

501 Adjustable Baseplate

KB-501ABP

Regular price$199.00 USD
/
Shipping calculated at checkout.
Style
Color



PRODUCT HIGHLIGHTS:

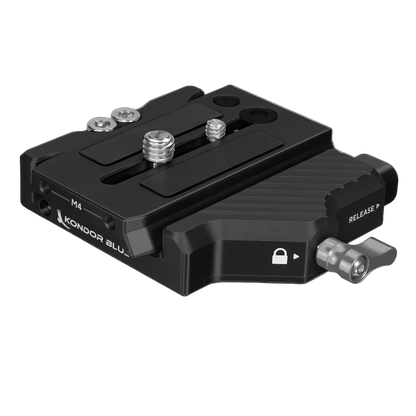

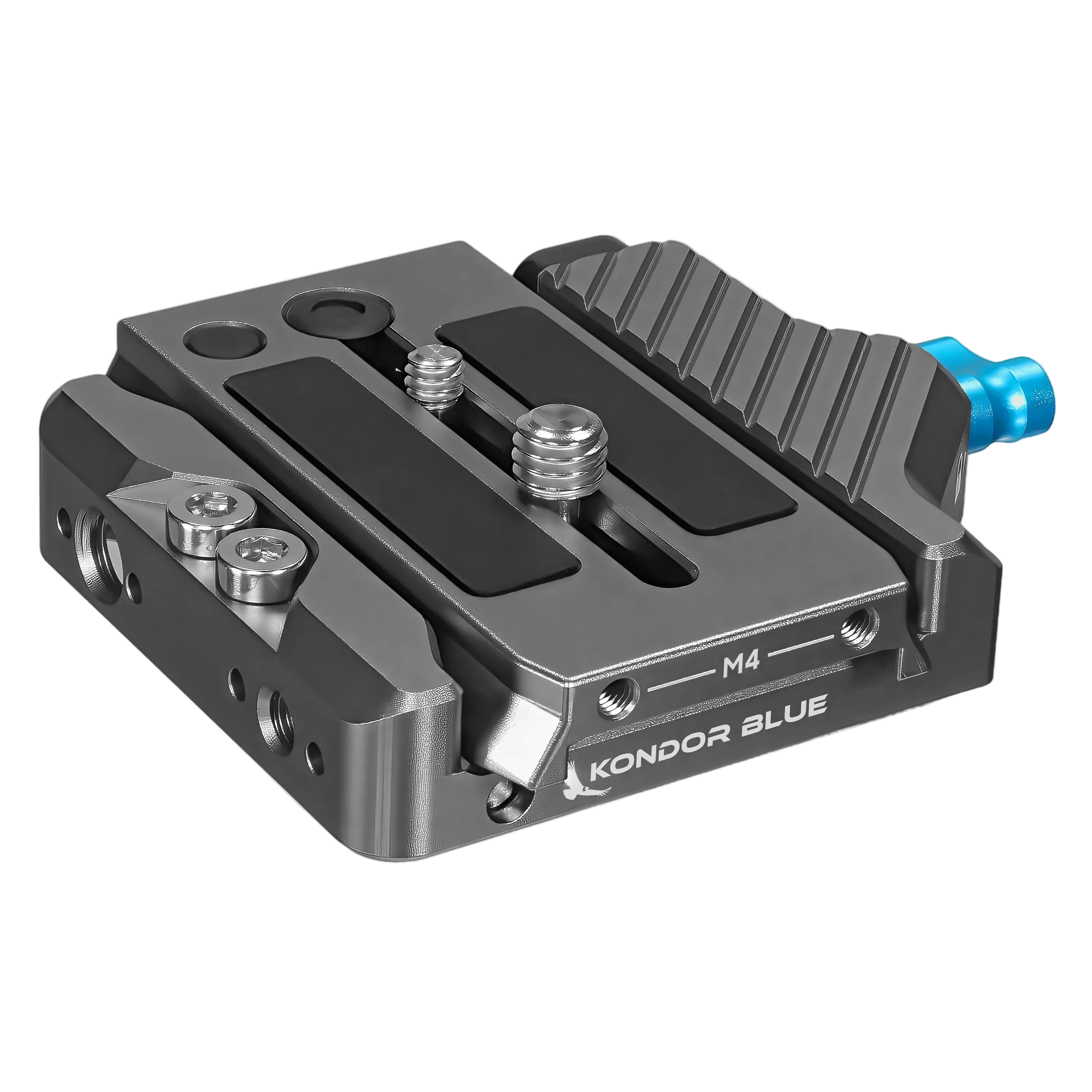

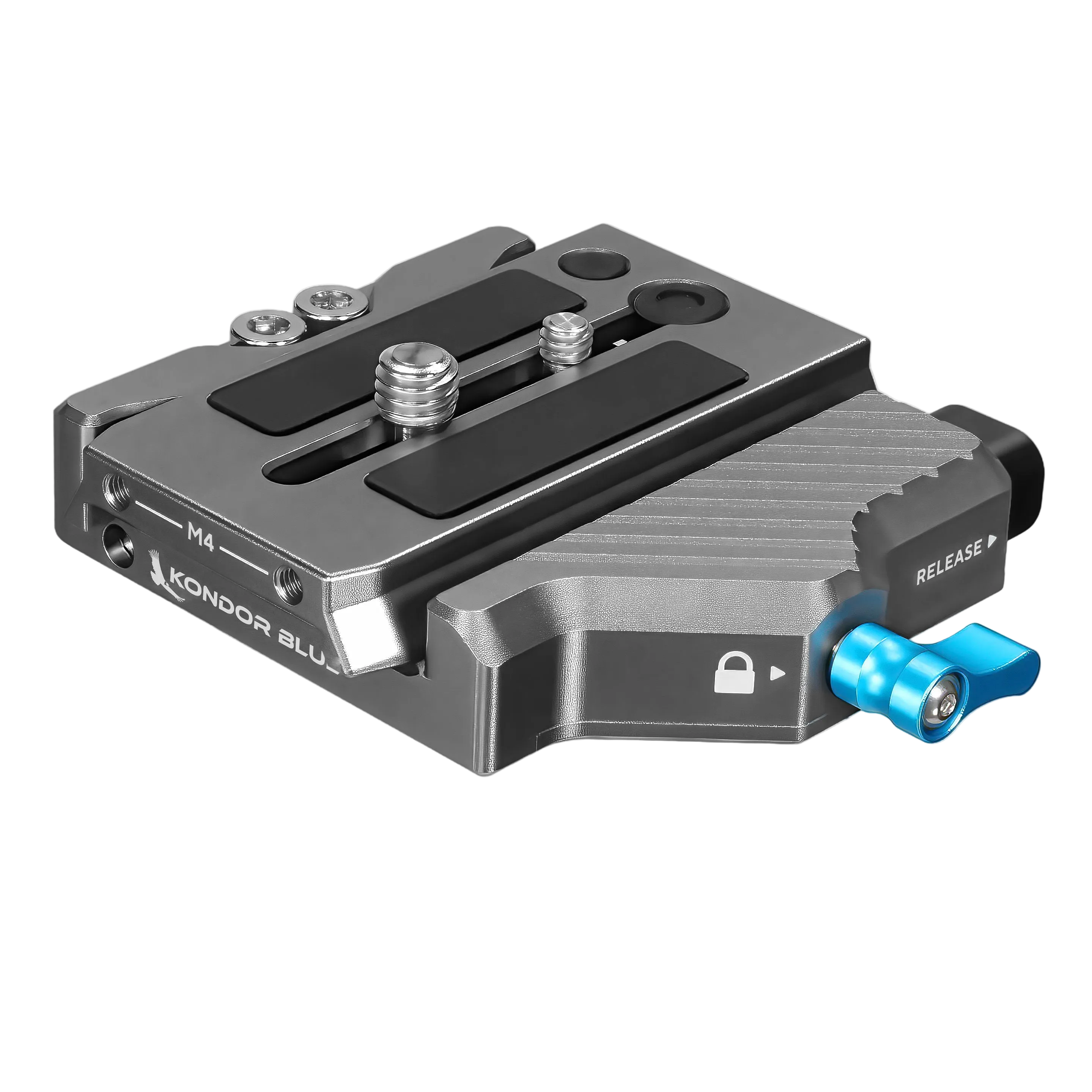

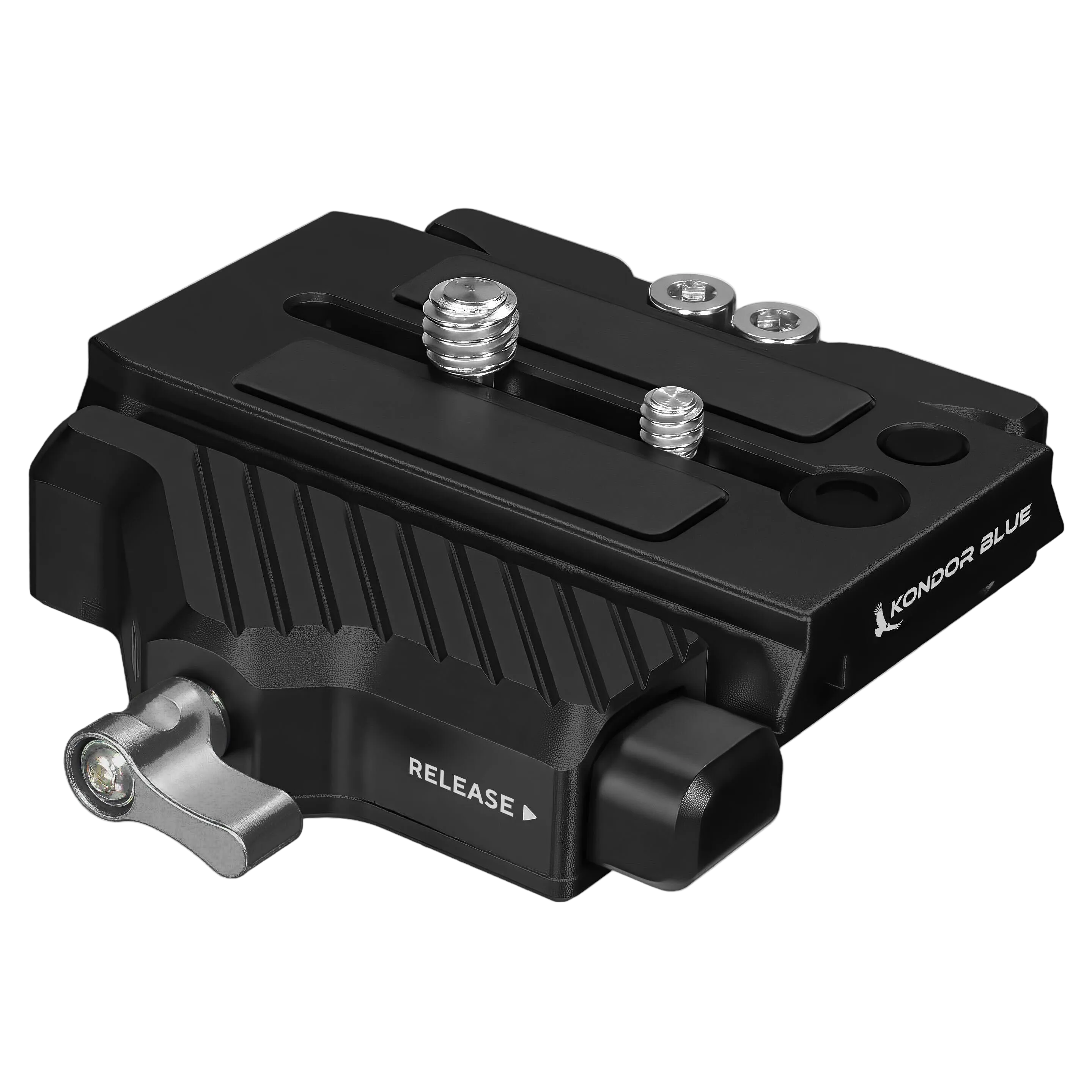

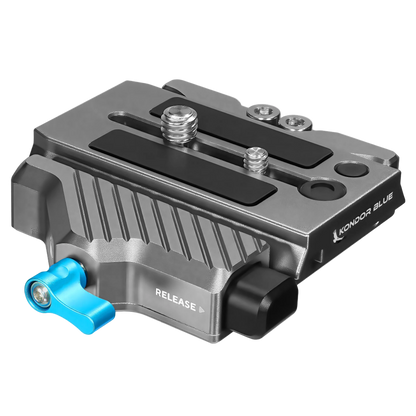

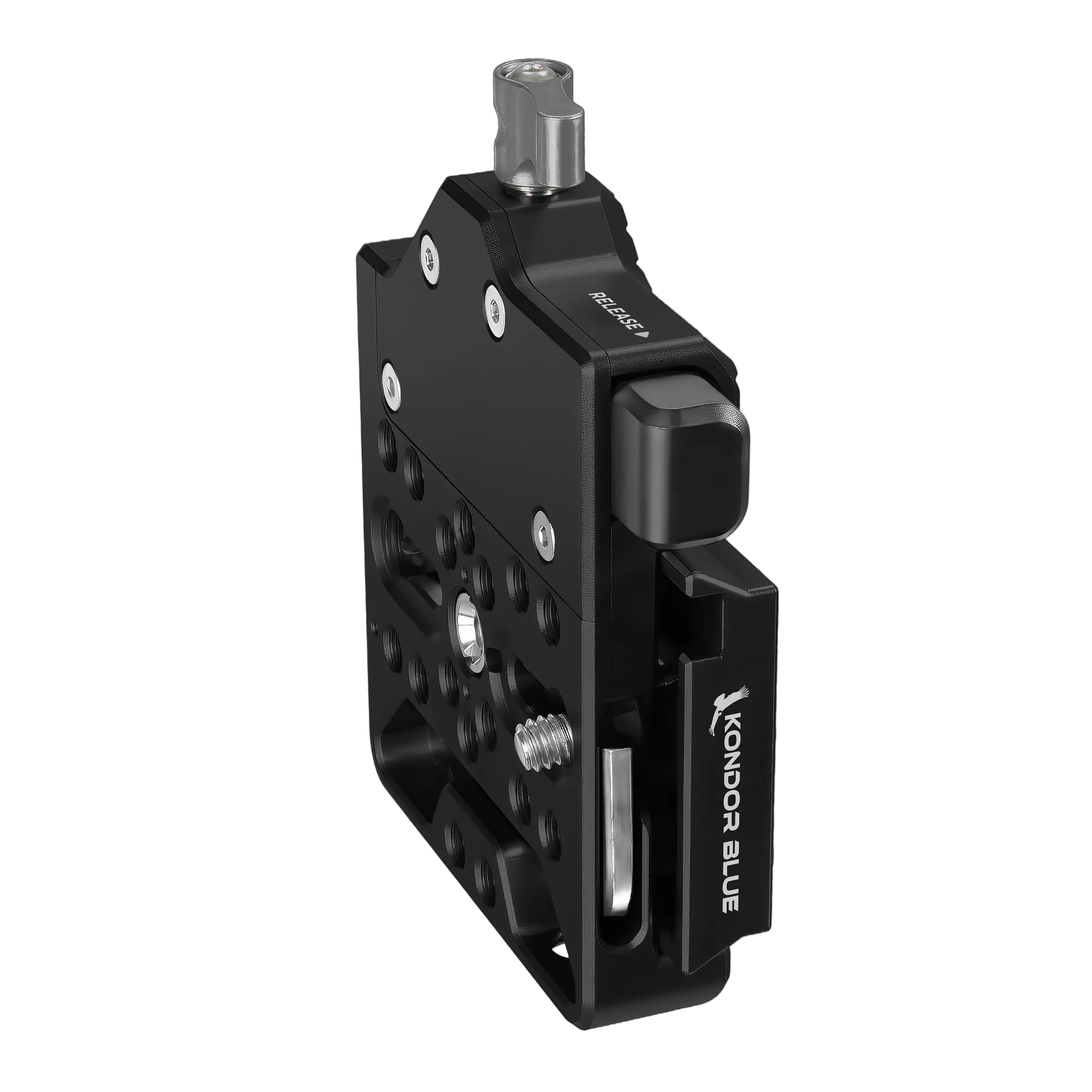

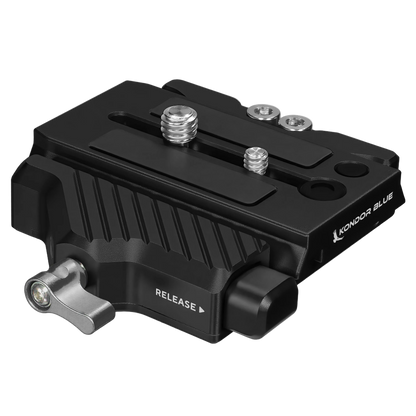

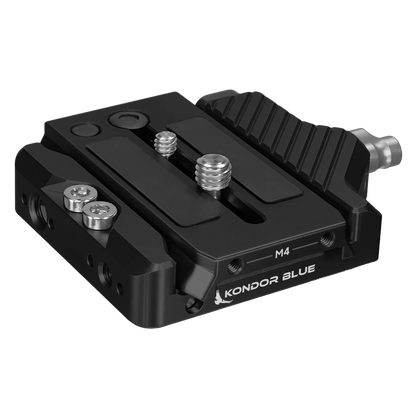

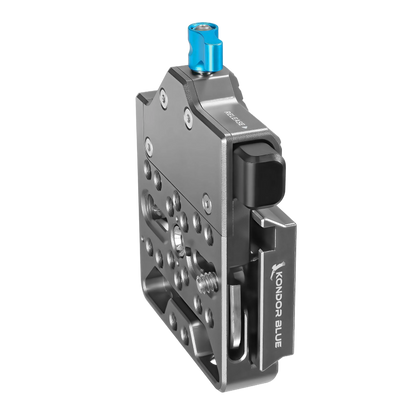

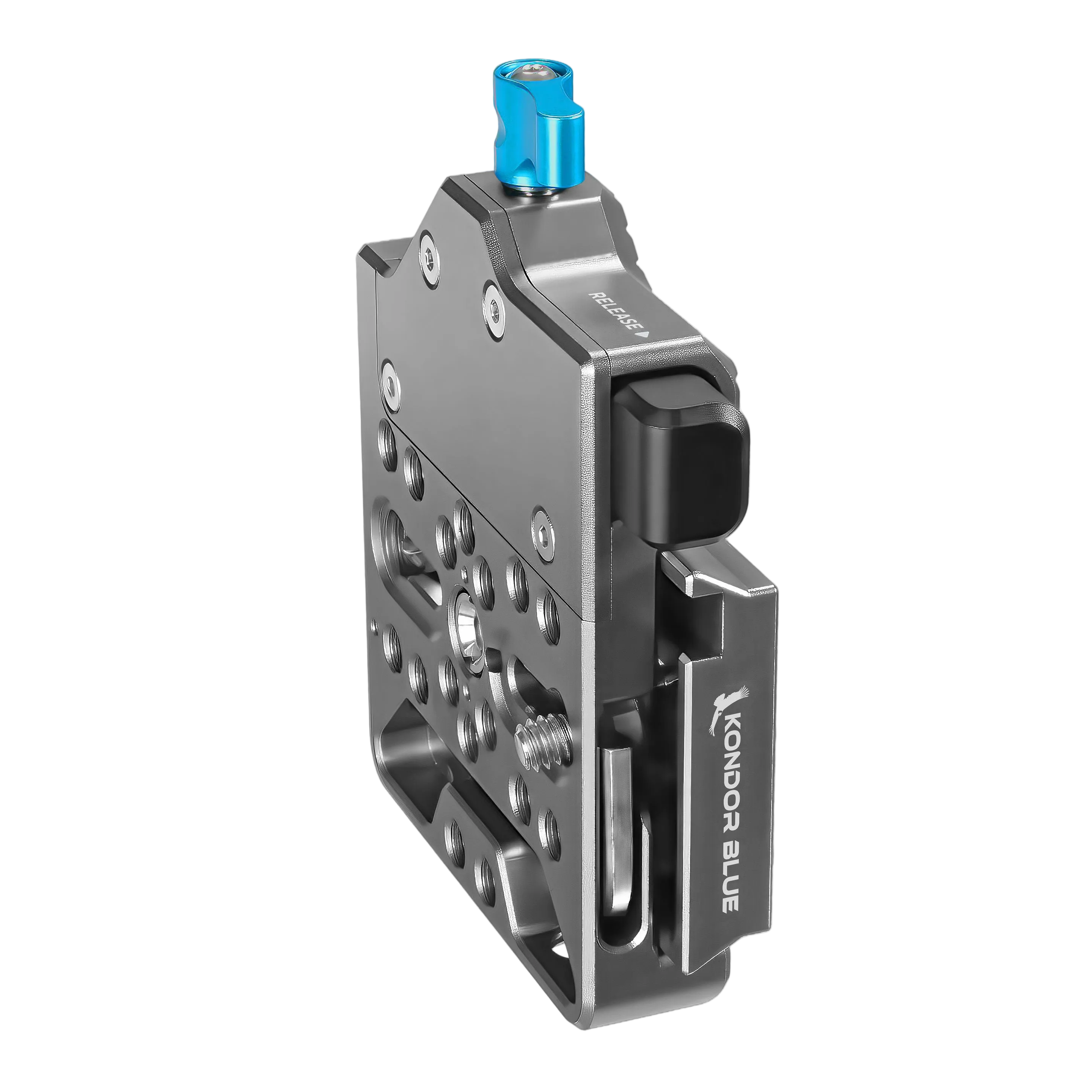

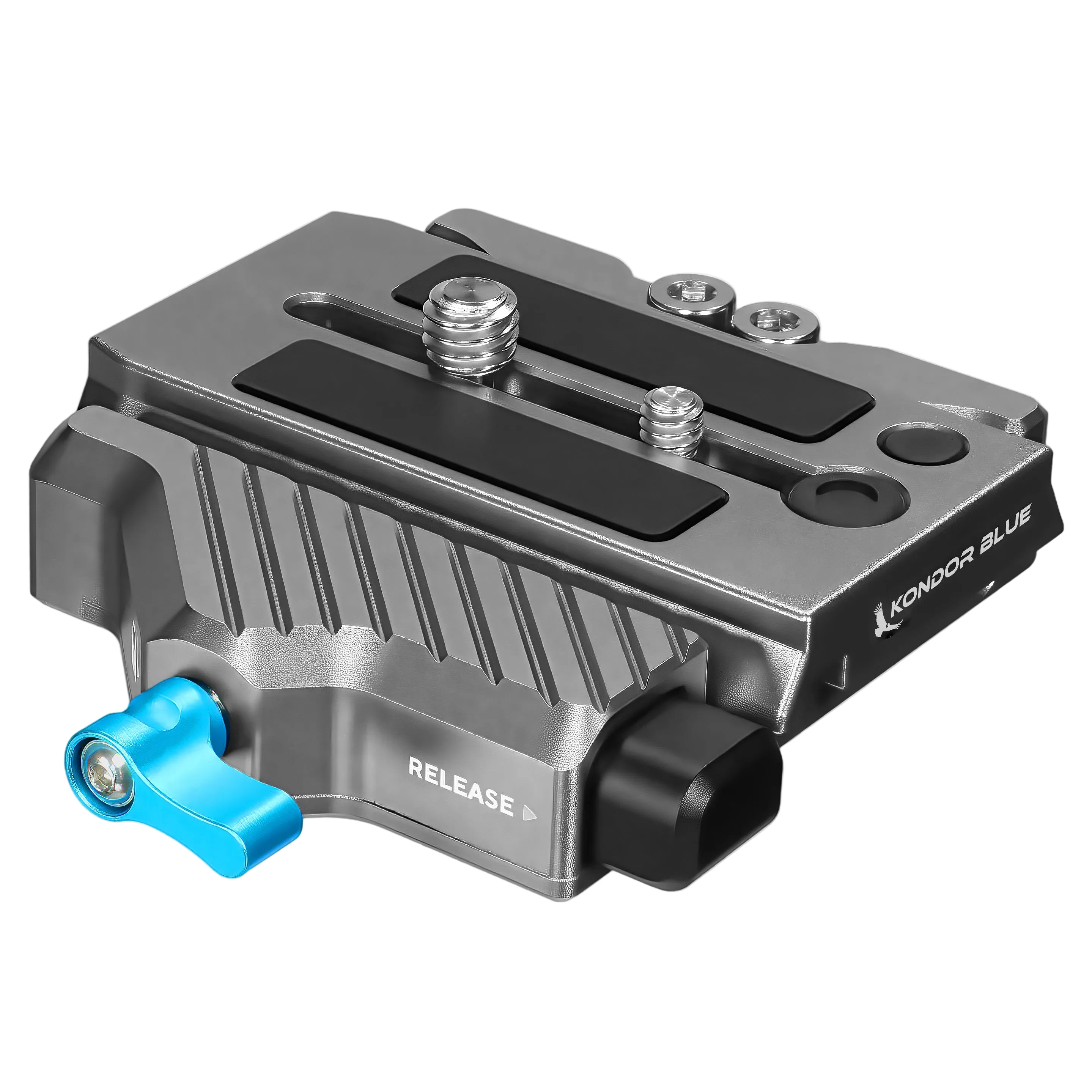

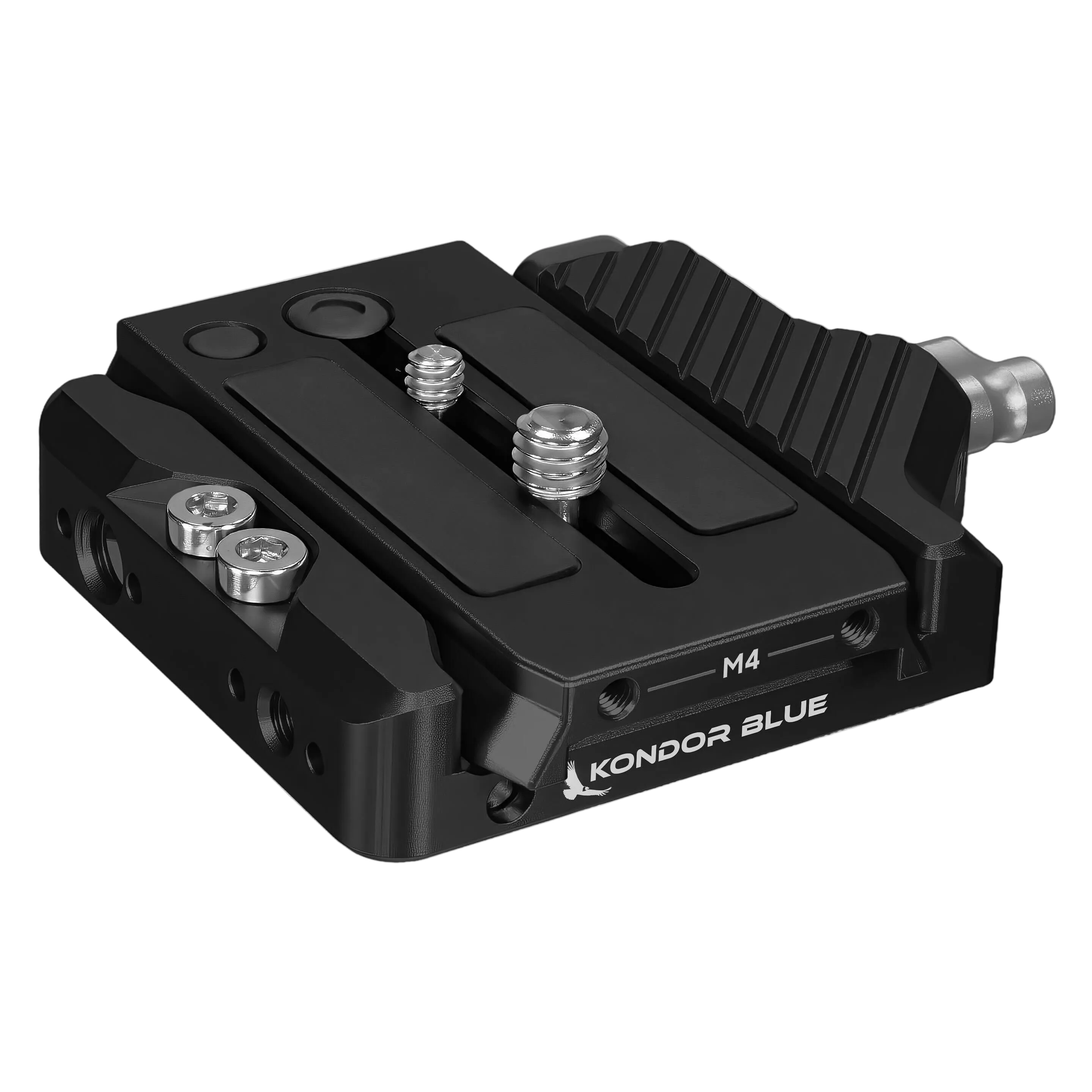

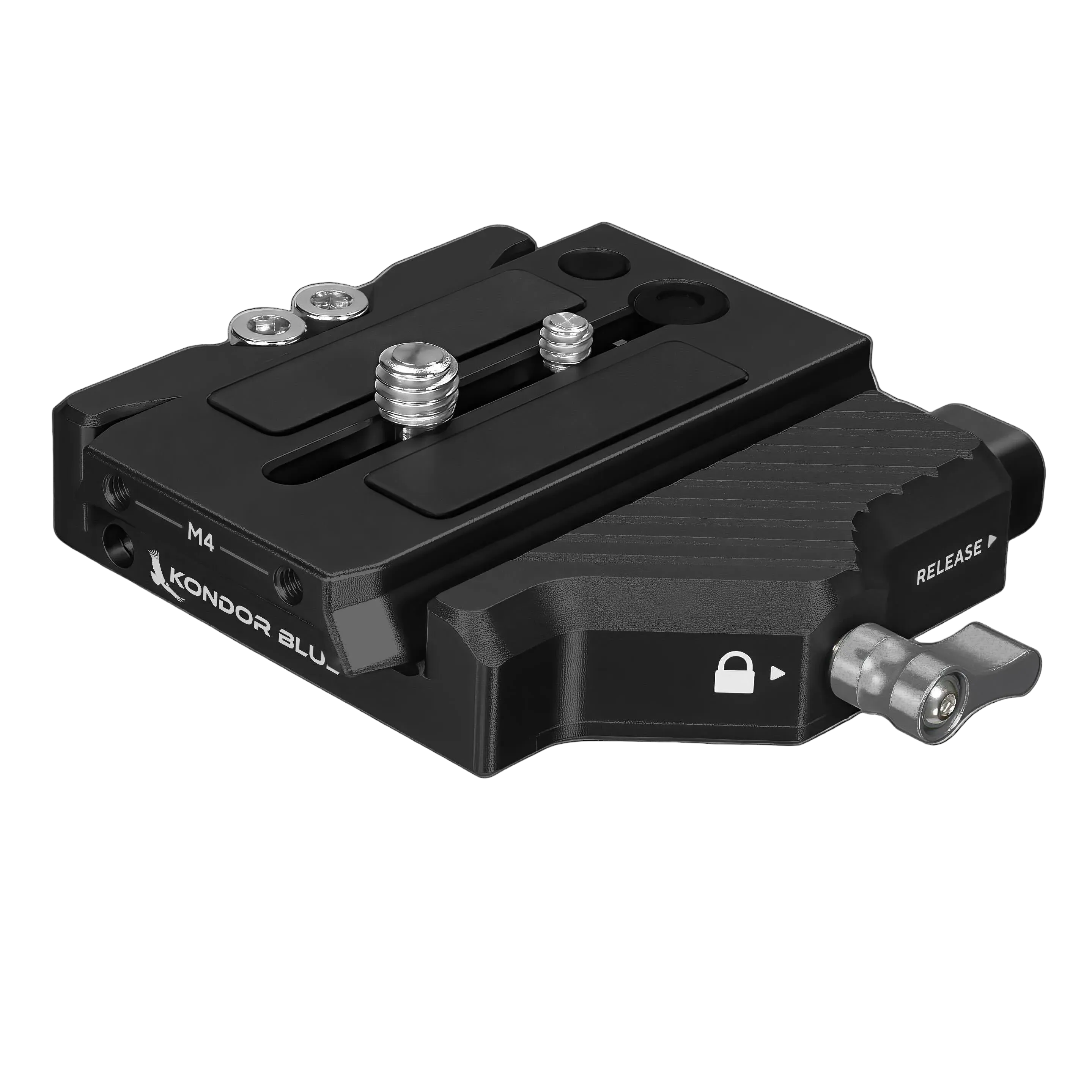

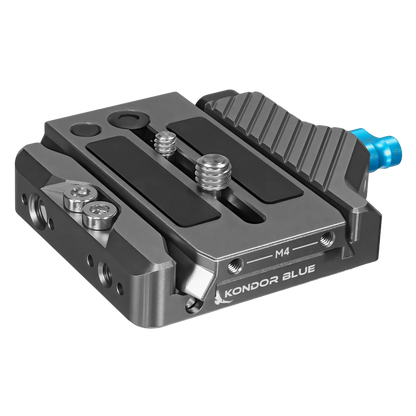

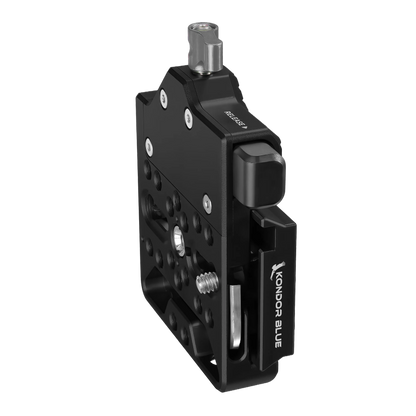

  • Removable 501 Drop-in Plate

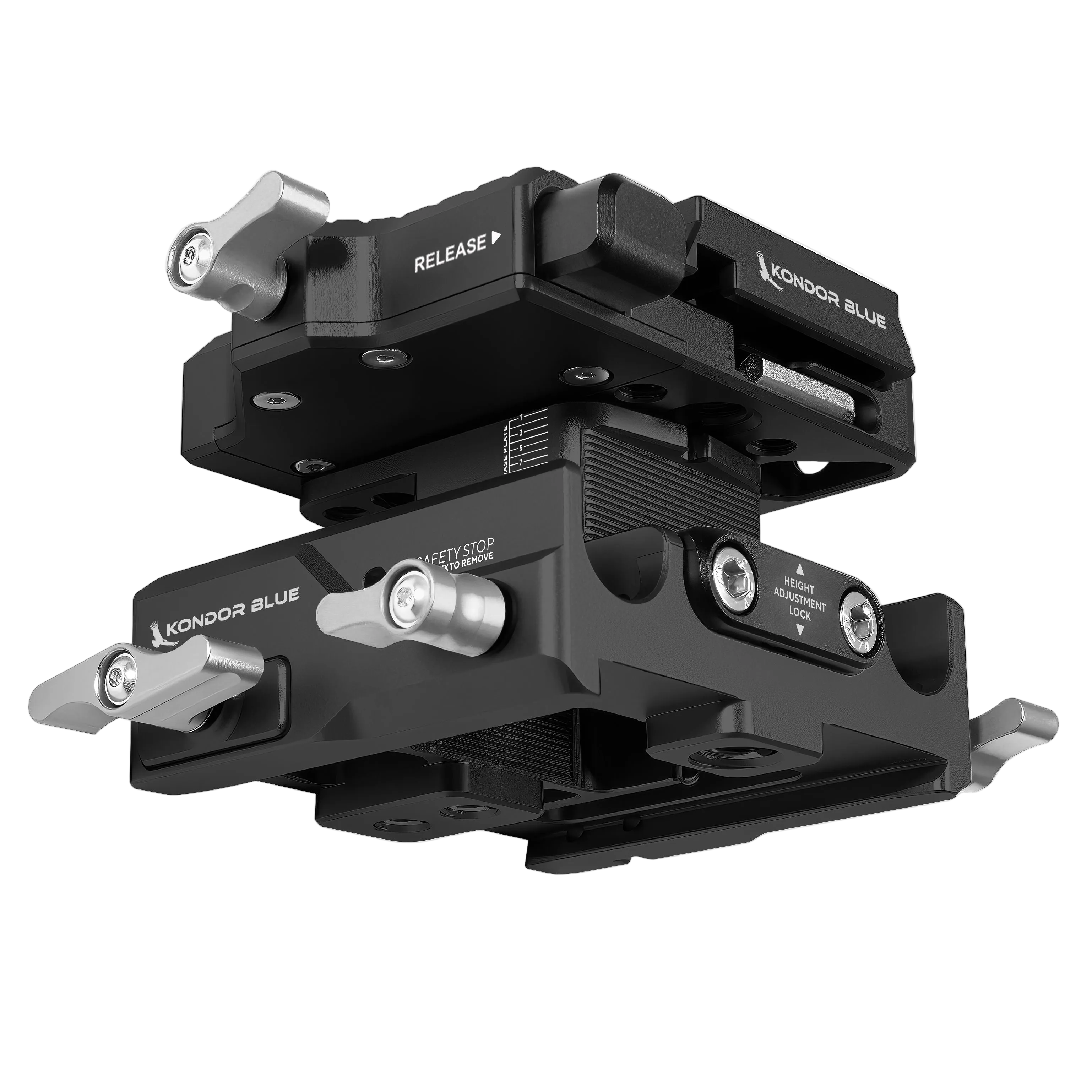

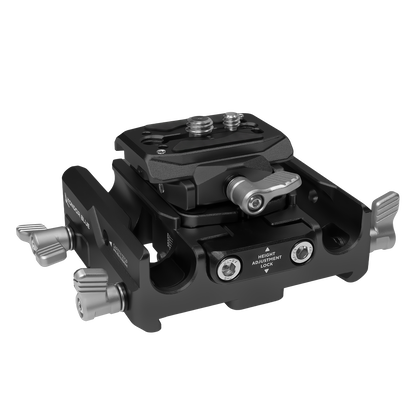

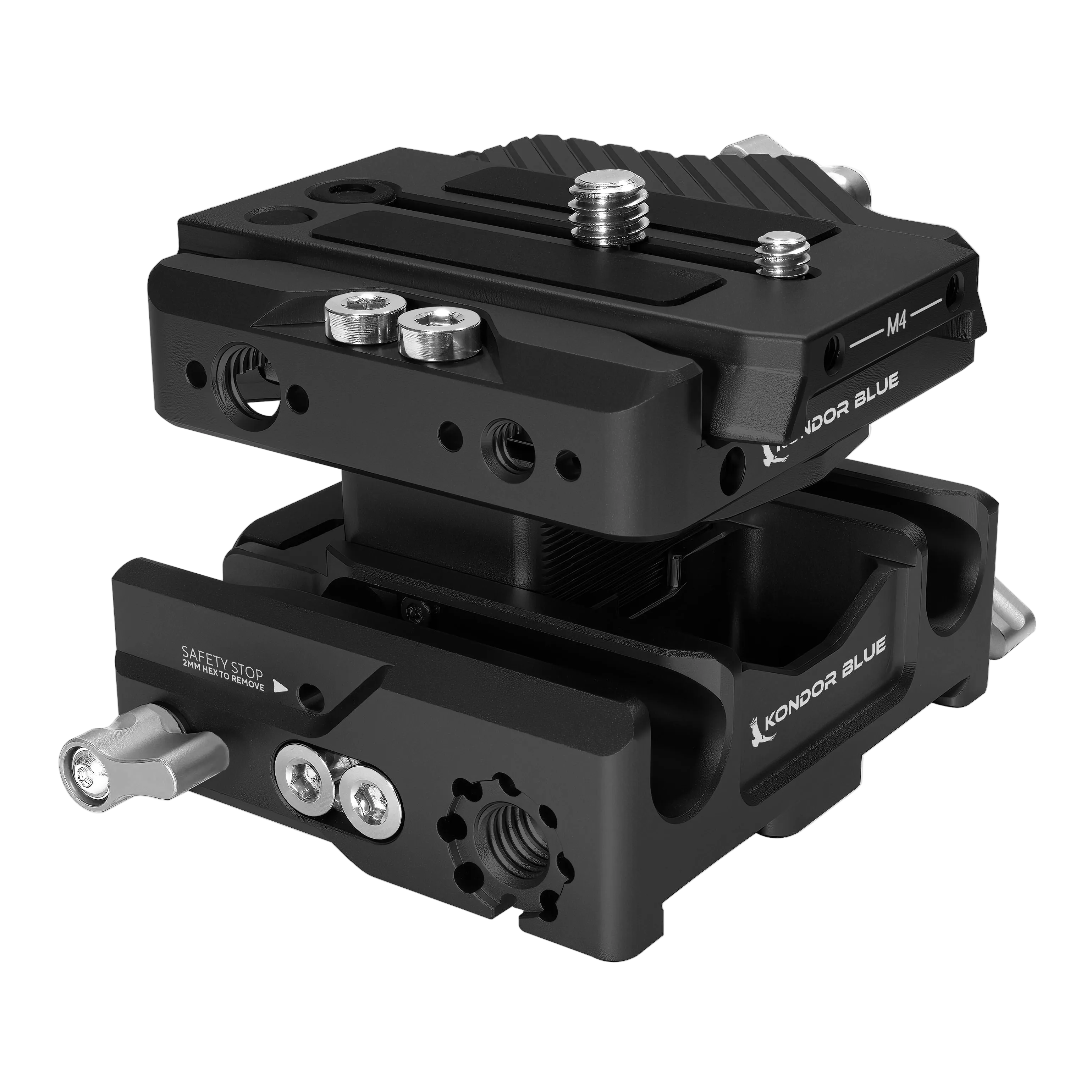

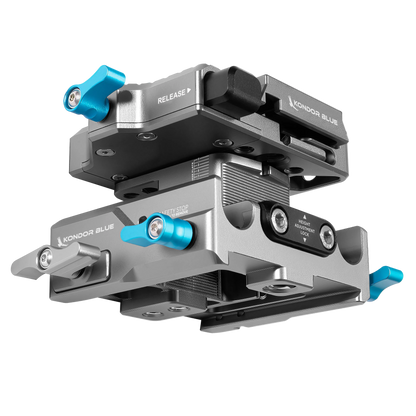

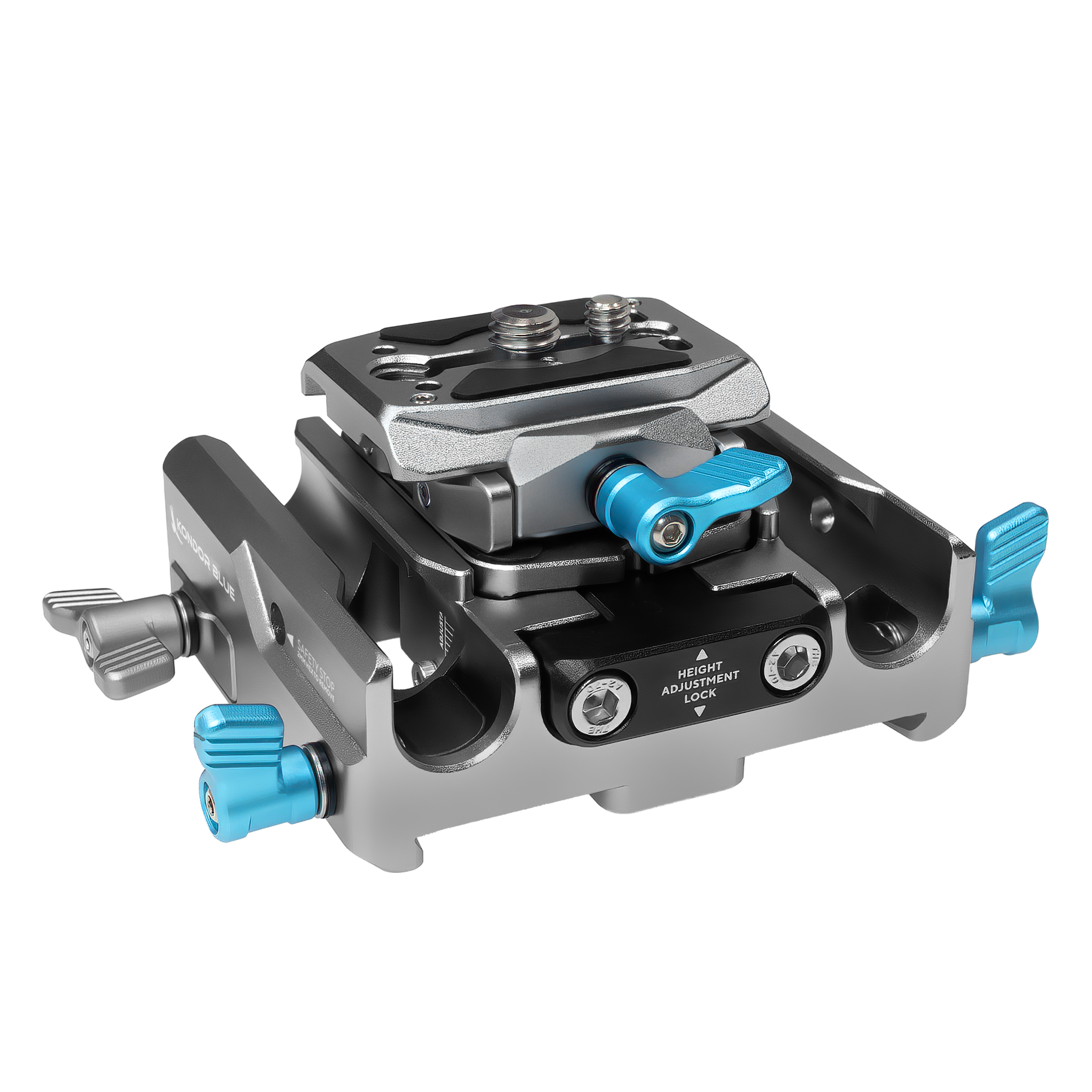

  • Locking height adjustable plate with 17mm of adjustment range
  • Built-in 4mm hex tool in 501 plate
  • ARRI style dovetail clamp

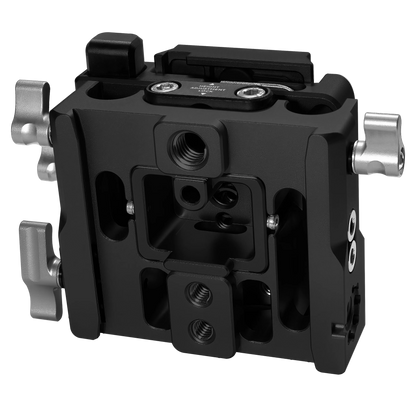

  • ⅜” and ¼” helicoil mounting holes on base

PRODUCT DESCRIPTION:

We took our 501 Baseplate back to the drawing board to give it a complete overhaul to add in some much-needed functionality. At the top of the list was to get as many of our camera cages to 85mm sensor to rail center offset for matte box compatibility. There are many height-adjustable baseplate options, but most start off too tall, mitigating the need for vertical height adjustment. It’s also easy for them to become loose and wobble or slip during a shoot. We addressed this by machining precise 1mm adjustments with corresponding laser engravings to make dialing in the baseplate height easy and accurate. We even have a guide for each cage we offer to let you know the exact position your baseplate should be set to.

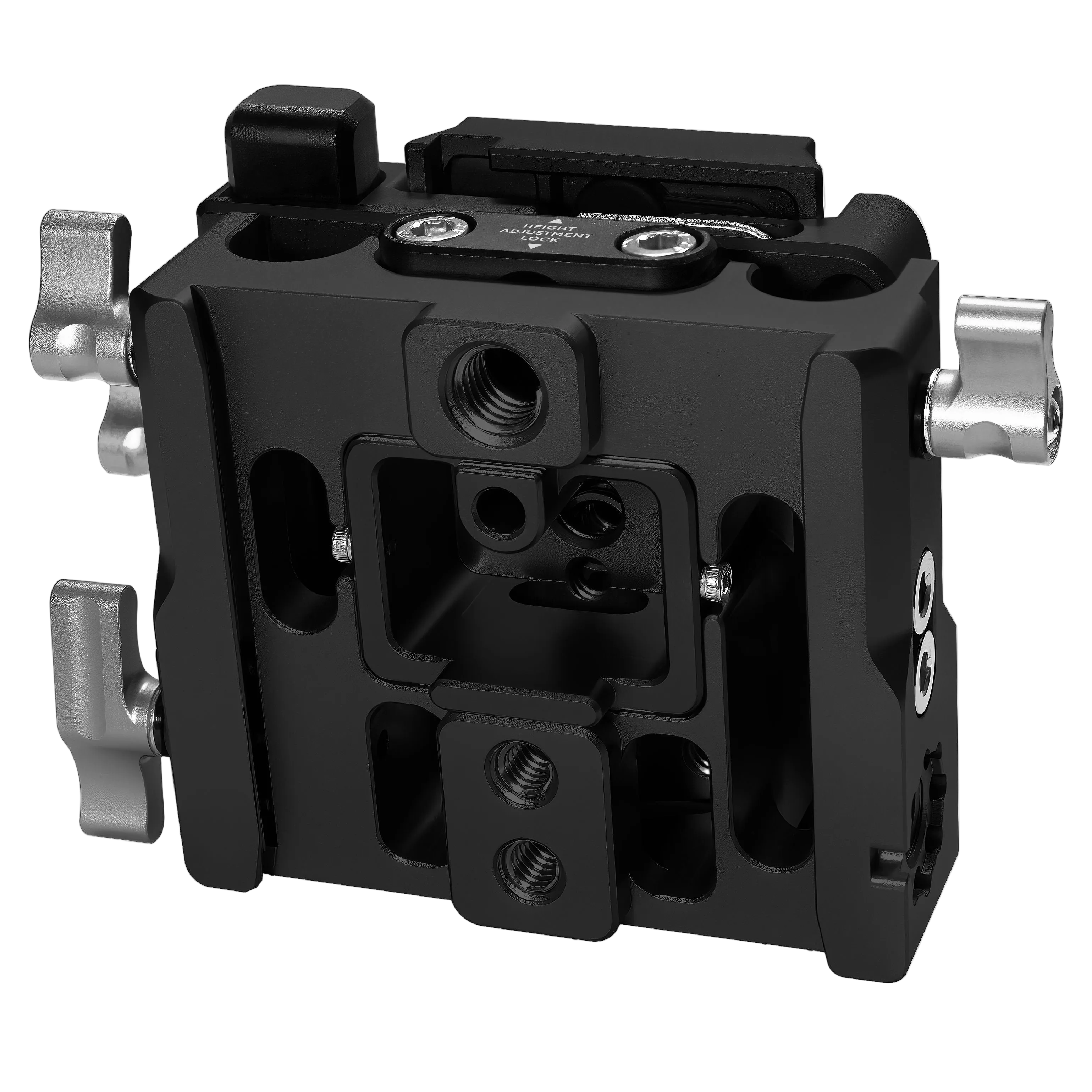

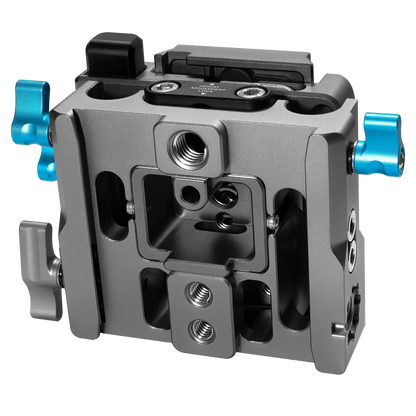

We’ve also improved the 15mm rail clamps to have over double the clamping force without marring your rails. The M4 ratchet knobs are also captive and you won’t need to worry about losing them. Whether you’re using the 501 Drop-in Plate or mounting directly to the Baseplate Riser Block, you’ll be able to mount multiple bolts to any camera cage to prevent twisting. Swapping out mounting options is a breeze with slotted access from the underside of the baseplate.

You have options for tripod mounting solutions as well. Mount tripod plates directly to the base with ⅜” and ¼” helicoil mounting holes or use the built-in dovetail clamp which pairs perfectly with our Lightweight Dovetail Plates.

As with all Kondor Blue products, long-term usability and functionality were meticulously considered with each cut, curve, and function. We know you’ll enjoy the added flexibility of the all-new Kondor Blue Adjustable 501 Baseplate.

The chart below serves as a guide for what the ABP should be set at to achieve the proper 85mm spacing for matte boxes and other rod-based accessories.

*Arca plate measurements based on the KB Universal Arca Swiss Plate. The Ronin Gimbal Arca Plate is also compatible with a range of height settings but will require the setting to be -3 lower than the listed measurement (ex. Arca setting: 6mm; Ronin Arca setting: 3).

CAMERA BRAND CAMERA MODEL ABP (No QR Plate) ABP w/ 501 Sideload ABP w/ Arca QR
ARRI Alexa Mini 6
Blackmagic 6K Pro 5
Blackmagic 6K G1 6
Blackmagic 6K G2 6
Blackmagic 4k 1 4*
Blackmagic Ursa 2
Canon C70 4
Canon R5 11
Canon R6 11
Canon R5C 2 5*
Canon R7 0
Freefly Ember 1 4*
Fujifilm GFX100 II 1
Fujifilm X-H2S 10 13*
Leica SL2 13
Nikon Z8 0 3*
Panasonic GH6 16
Panasonic BGH1 21 1 4*
Panasonic S1/S1R 13
Panasonic GH5S/GH5 II 1
Panasonic S5II/S5II X 5 8*
Panasonic S1H 11
Panasonic G9II 5 8*
RED Komodo/X 0 3*
RED V-Raptor 9
Sigma FP 9 12*
Sony A7s III 14
Sony FX3 (V1 Cage) 3*
Sony FX3 (V3 Cage) 1 4*
Sony A1
Sony A7R4 14
Sony FX6 2
Z Cam E2 0 3*

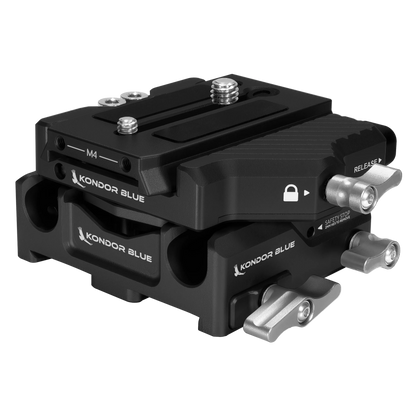

501 QR

  • 493g/17.4 oz
  • 96.5mm W x 74mm L x 49mm T
  • Height range from rail center: 29mm - 46mm

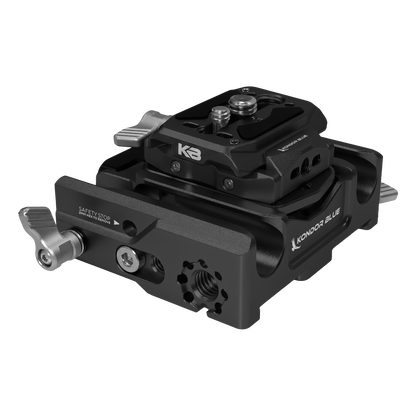

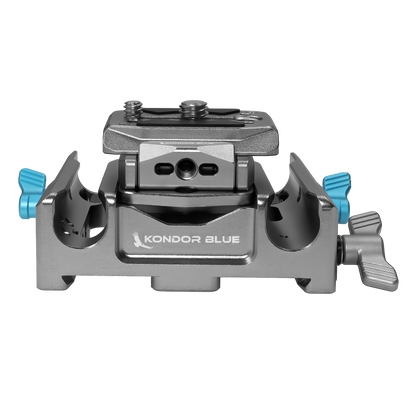

Arca QR

  • 343g/12.1 oz
  • 86mm W x 84mm L x 46mm T
  • Height range from rail center: 26mm - 43mm

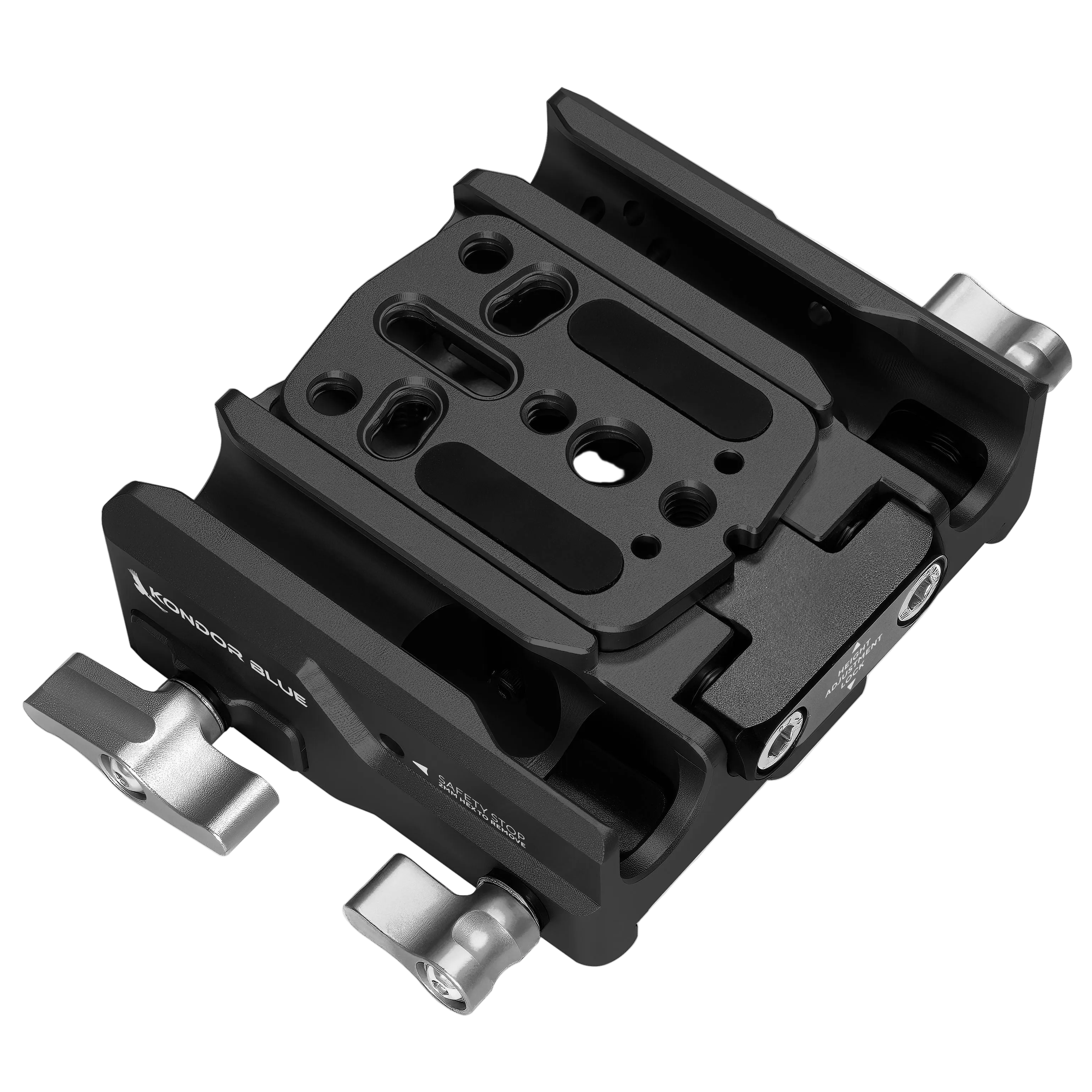

No QR

  • 249g/8.8 oz
  • 86mm W x 74mm L x 29mm T
  • Height range from rail center: 9mm - 26mm
