MARBL ORBIT STUDIO

Key Features:

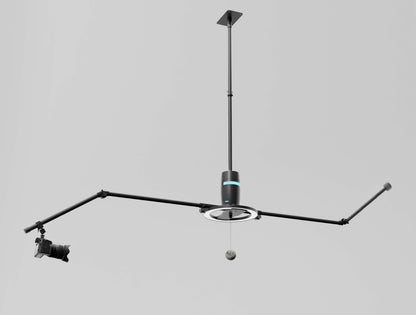

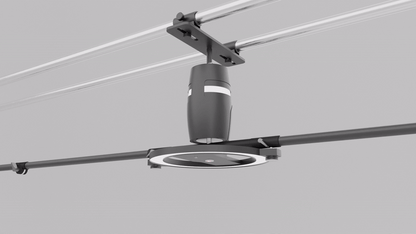

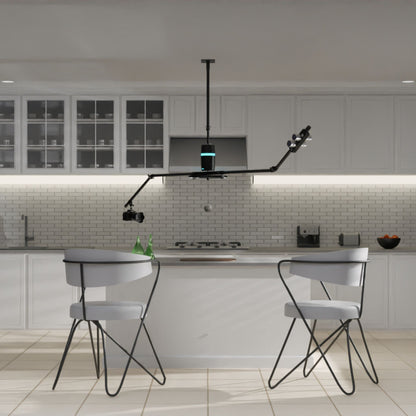

• Ceiling-mounted camera rig
• Counter-weighted motor-controlled orbiting camera rig delivers repeatable precision parallax
• Remote controlled (IR or Wi-Fi app)
• Includes motor mountable ring light with subject centering aids (laser crosshair, moon ball)
• Speed adjustable from 1 Rotation every 48 Hours up to 10 RPM
• Adjustable modes: product, interview, time-lapse, and stop-motion
• Supports up to a 10 Lb camera (extra counterweights required)
• Multi-arm length configurations with articulating joints
• Operating volume 45 dB
• “Stealth Mode” Reduces operating volume to 32dB (requires included IR remote)
• 3 Lbs counterweights included
• Minimum overhead space required to operate is 8ft

The MARBL Orbit ceiling-mounted orbiting camera rig is backed by a limited warranty that covers craftsmanship, parts, and service. View full warranty details HERE.

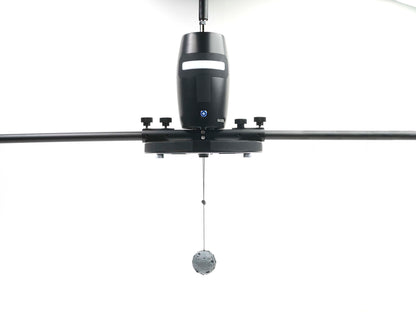

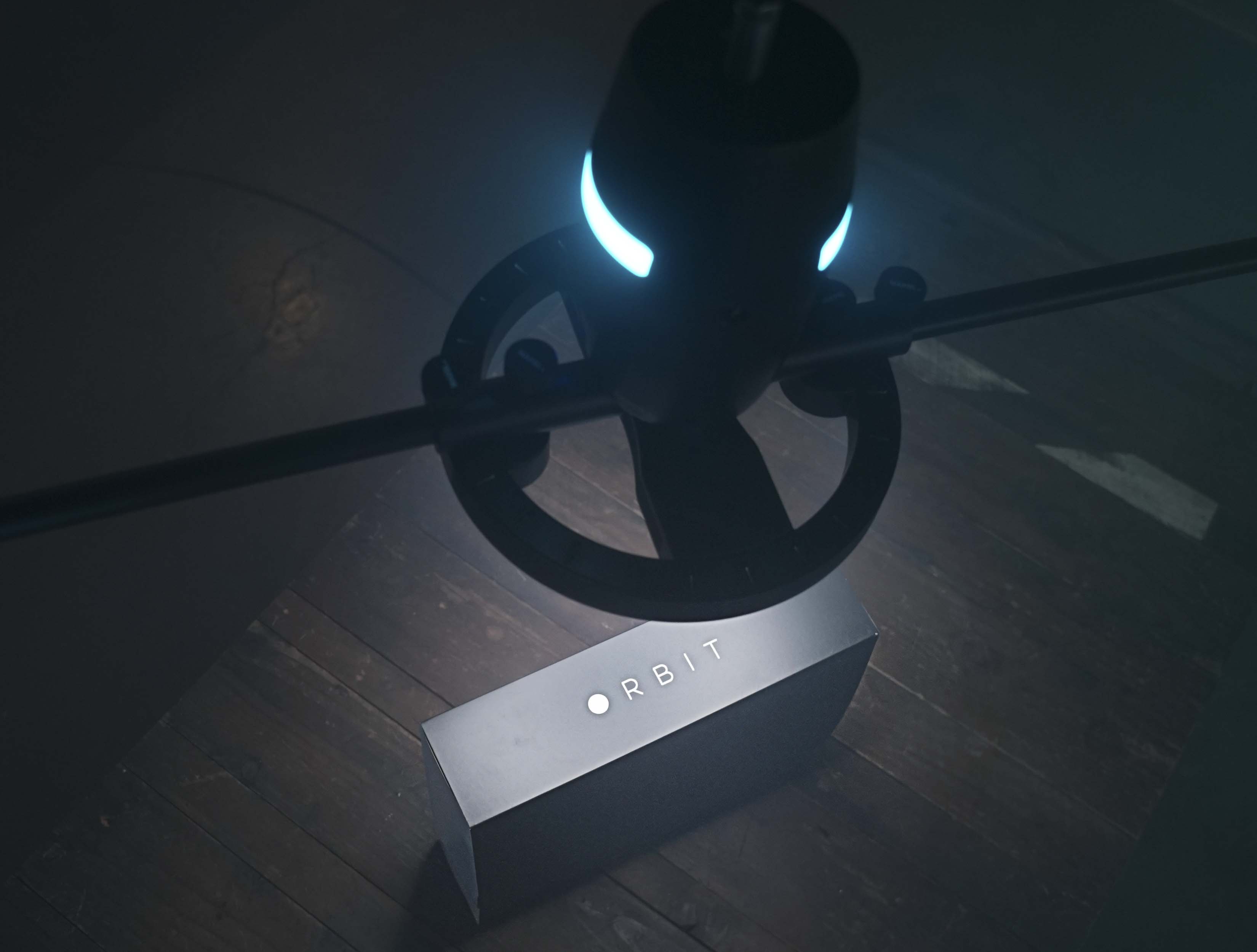

1 x Axibo Powered Stealth Motor

• Internal 6700mAh battery with up to 8 hour run time.
• IR Remote Controlled “stealth mode” optimizes motor for dead quiet operation under 3RPM.

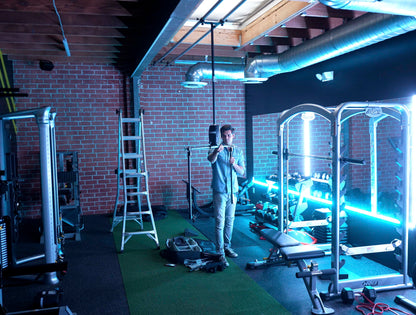

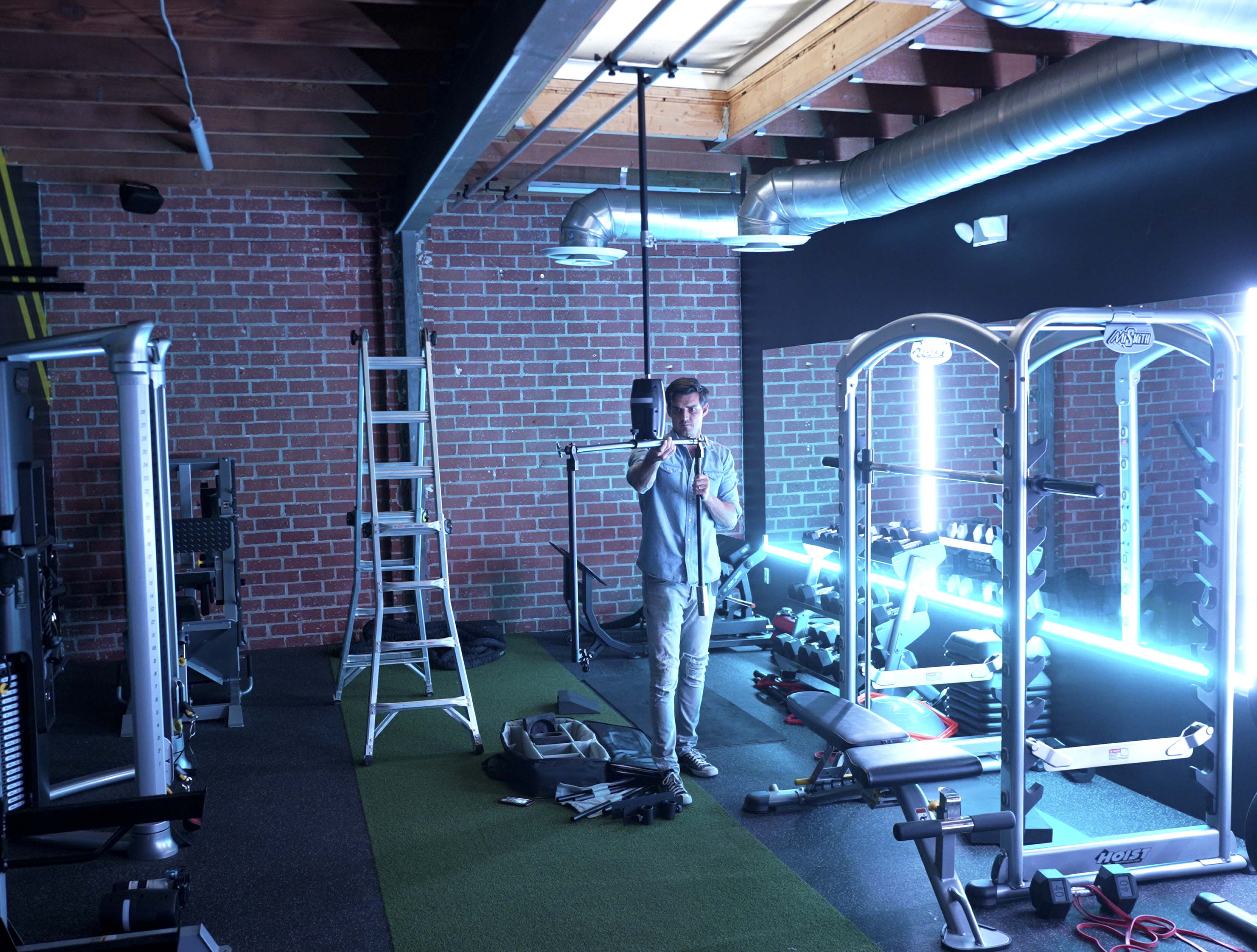

1 x Ceiling Plate with hardware assembly. Mounts into Studs/ joists, or cement ceilings. Includes screws.

1 x Telescoping Down Rod. Attaches to ceiling Plate and to Orbit Motor with an adjustable height of 27” - 46”.  Ideal use for ceilings 8-12’

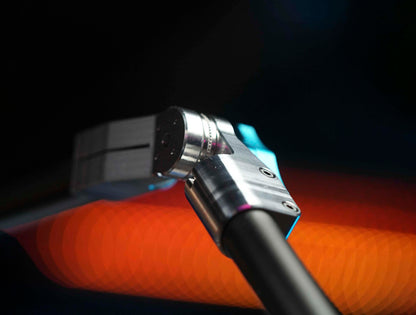

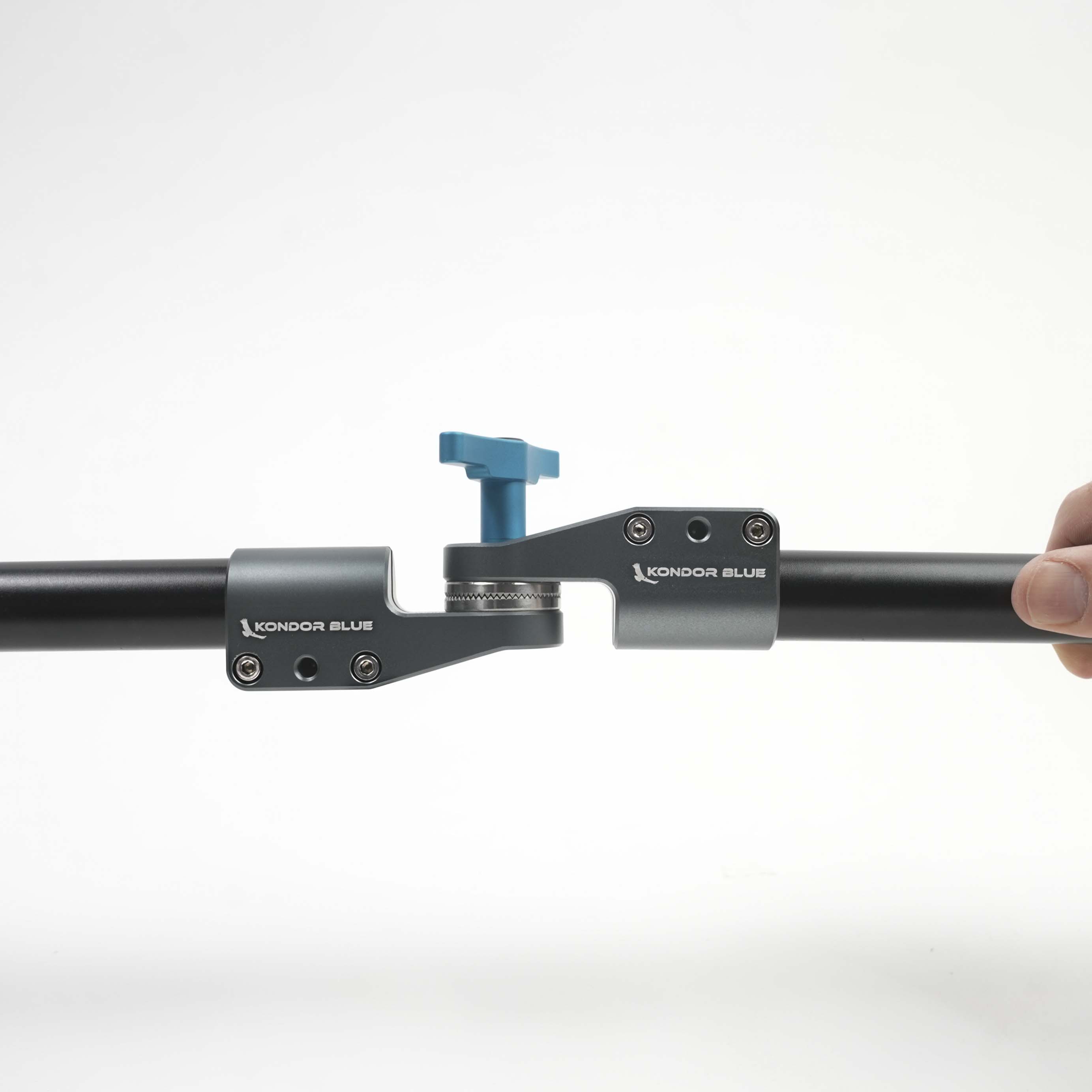

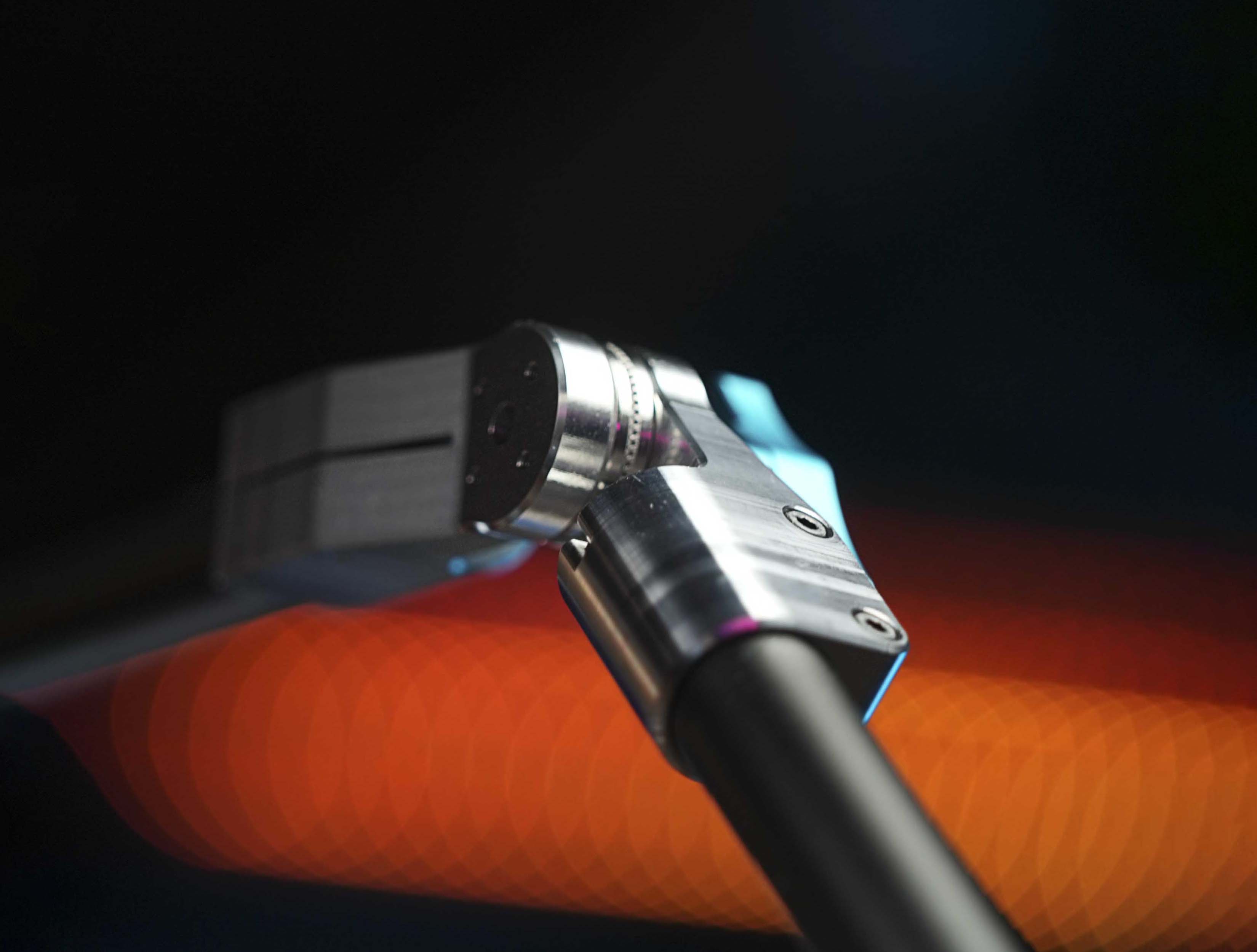

2 x Kondor Blue Arm Joints. Anodized 6160-t6 aluminum, with ARRI Rosette steel teeth.

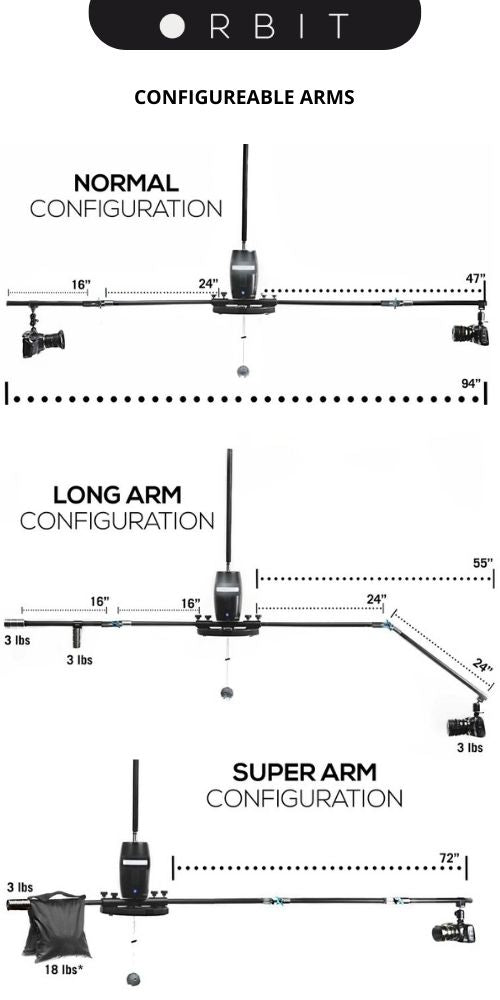

4 x Anodized Black aluminum arm poles. (2) 24” and (2) 16 inch. Total span across when assembled 94”. Can be stacked to create a 72” super camera arm.

2 x Threaded End Caps with 1/4-20 mounting for accessories or counterweights. Caps thread into arm poles.

1 x Dual Arm Receiver. Includes bubble level for proper weight distribution.

3 x 1 lb Counterweights. 1/4-20 threaded, stainless steel construction.

1 x Ball Head to Cold Shoe Mount. Fits normal DSLR or Mirrorless cameras such as Sony, Canon, Panasonic.

1 x 1/4-20 to Cold Shoe Mount. Mounts to any camera with 1/4-20 mount and creates a quick release cold shoe.

(1) Bar Sleeve. 1/4-20 mount, attaches to ball head and camera.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

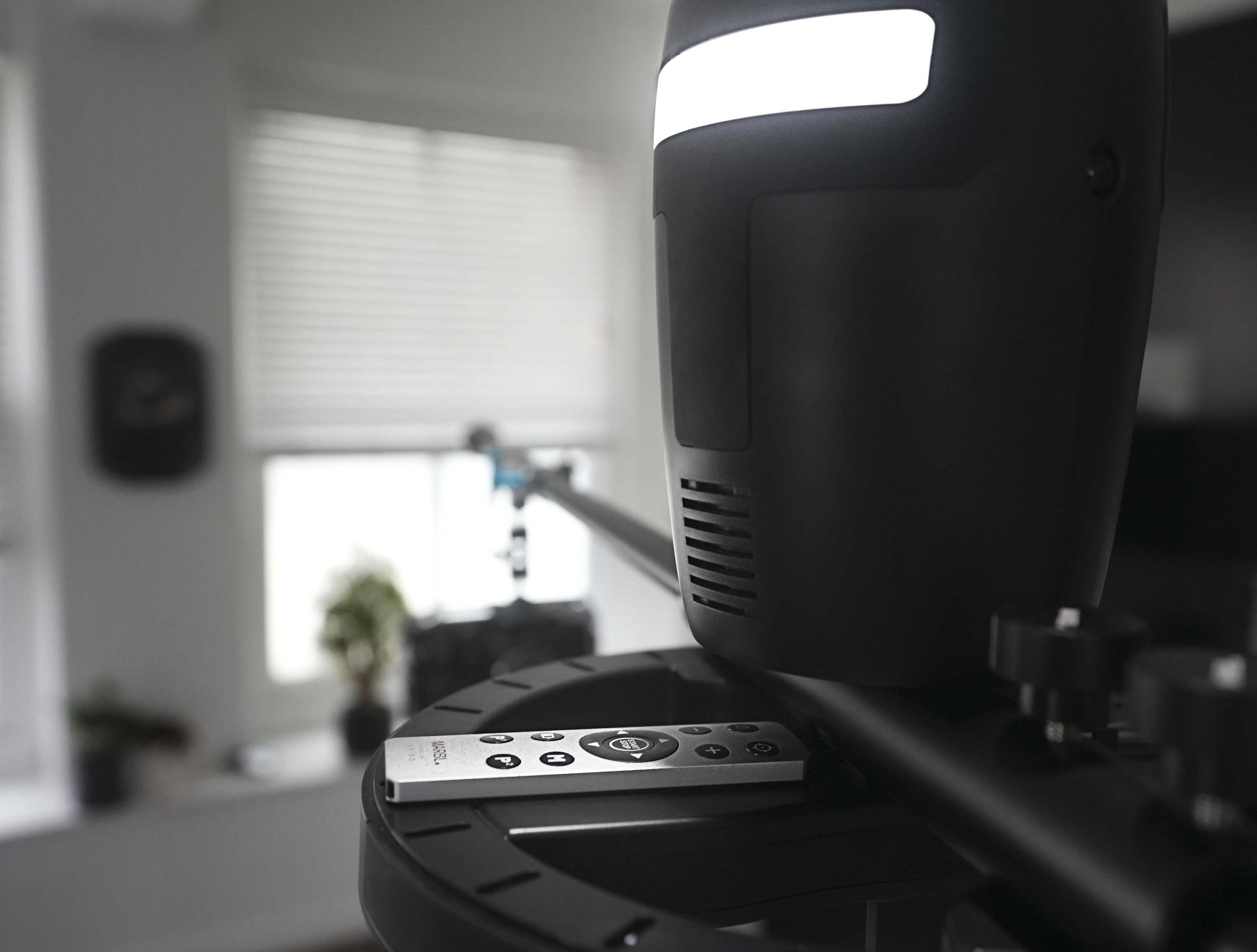

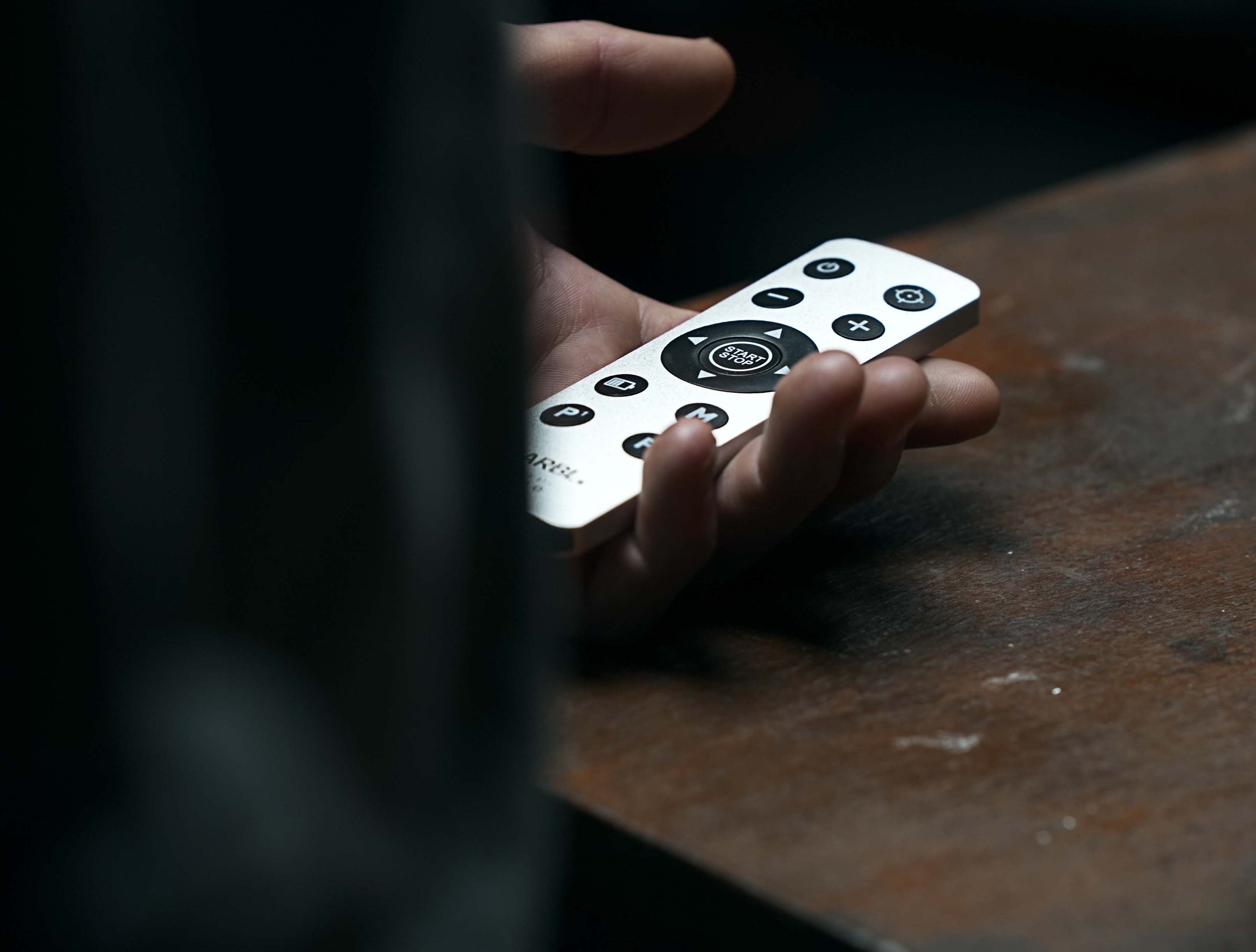

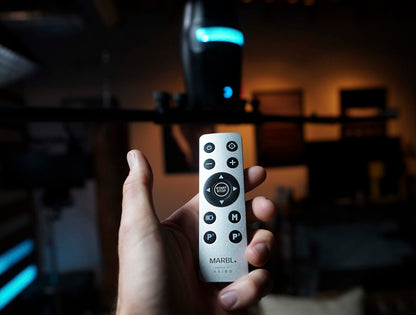

(1) Aluminum IR Remote control + Wi-Fi App

(1) Studio Ring Light:

-5600k Daylight LEDS.

-Diffused and dimmable, CRI 97+ LEDS. Good on products and Skin tones.

- Laser guide for finding perfect center of orbit.

-(1) Magnetic Focus Ball. Pull focus for yourself or use to set exposure with near 18% grey moon ball.

-Internal 6700 mAh battery bank. USB-C quick charge or reverse charge to use as battery bank.

-7 hour battery life @ 50% brightness. 3.5 hour battery life @ 50% brightness.

- 32 Step encoder for brightness, 5 step remote brightness.

-Tool holder + Magnetic remote holder

Orbit has 4 adjustable modes that deliver robot like precision and buttery smooth motion.

Mode 1: Product: Add 360 degrees of depth and dimension to your product shots. Control direction and speed from ½ RPM to 10RPM.

Mode 2: Interview: Enhance interviews, vlogs, Youtube reviews, podcasts and more with super slow cinematic motion. Operating speed range- 1/30 RPM - 10 RPM.

Mode 3: Time Lapse Mode: Orbiting Time lapses are next level. You can capture your DIY projects, objects, plants growing and more. Speed settings are pre-programmed up to 1 rotation per 48Hrs.

Mode 4: Stop Motion: Blow minds with Orbiting animation. Orbit only moves by .5,1,2,5,10, or 15 degrees every time you command it to.

VFX Audio Mode :  Enable orbit to create an audible blip after every rotation.  Use this audio cue in post via its audio wav spike to separate each orbit in the same spot. Then slice stack and mask the special effects.

Stealth Mode: Kill the operating noise during shots that require absolute silence. Orbit can temporarily deactivate demanding resources such as Wi-Fi and optimize motor settings to run silently under 3 RPM. IR remote is required to operate Orbit when STEALTH function is active.

Wiper Mode:  Easily program two endpoints for the orbit to move back and forth from. Ideal for interviews.
